Setting Angle; Setting End Stop Of Legrest - Invacare Modulite User Manual

Modulite

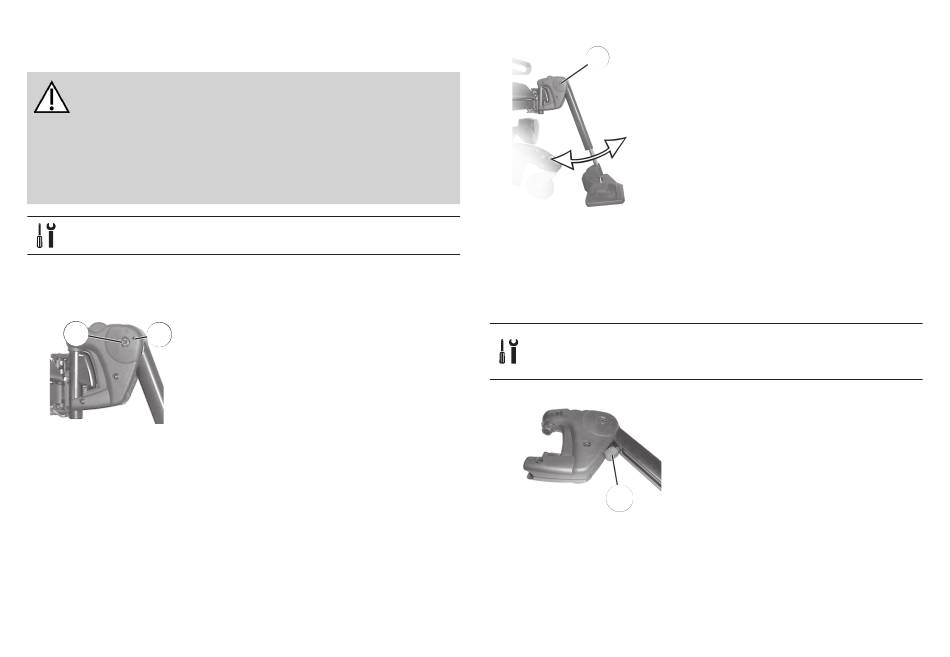

3.17.2 Setting Angle
CAUTION!
Risk of injury due to incorrect adjustment of the
footrests and legrests
— Before and during every journey it is imperative t o
ensure that the footrests contact neither the c astor
wheels nor the ground.
6 mm Allen key
l
1. Loosen the screw A using the Allen key.
2. If the legrest cannot be moved after
loosening the screw, position a metal pin in
A
B
the designated borehole B and use a
hammer to knock on this lightly. The
clamping mechanism in the interior of the
legrest will be released by this. Repeat the
procedure from the other side of the legrest
if necessary.
38
3.
C
Loosen the screw C.
4. Set the desired angle.
5. Re-tighten the screw.
3.17.3 Setting End Stop of Legrest
6 mm Allen key
l
10 mm wrench
l
1.
A
The end position of the legrest is
determined by means of a rubber stop
A.
1656515-G
