For AVIVA RX and AVIVA FX, drive and seating restrictions are updated
both while driving and while stationary.
2.4.1 Driving Limitations
Seating systems are configured / programmed with a drive slowdown.
The drive slowdown utilises microswitches to trigger the system into
reduced drive speed.
All tilt and recline seating systems are equipped with a drive lockout
(DLO) limit to prevent the wheelchair from being driven when the
seating system is tilted or reclined beyond a pre-determined safe total
angle and / or a pre-determined height. The total angle can be any
combination of seat angle, backrest angle and / or surface angle.

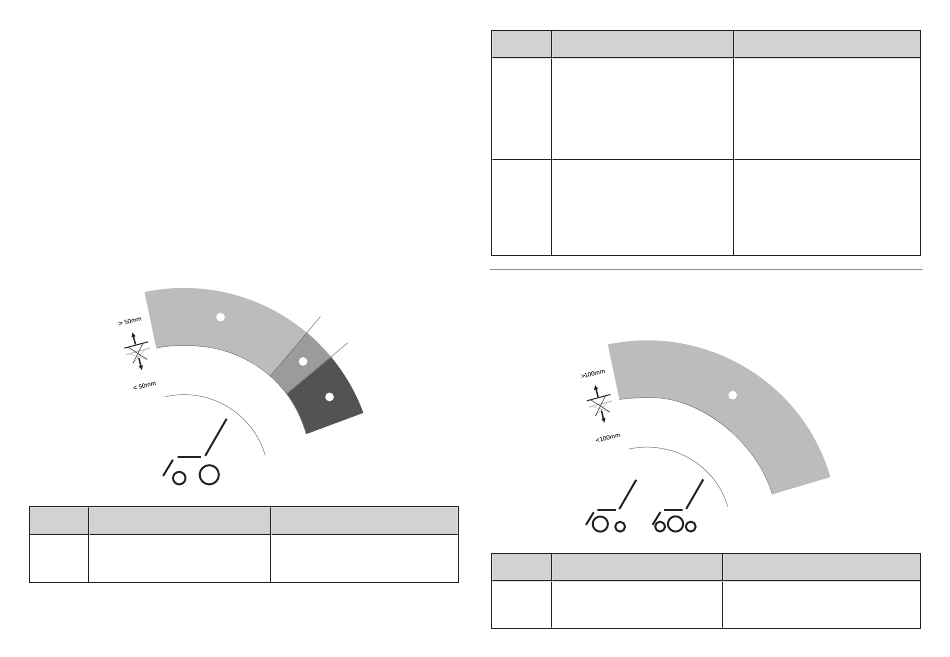

AVIVA RX with Lifter
Limitation
Drive Slowdown
A
1656515-G
130°
A
140°
B
C
Cause for Limitation
If lifter is raised
>50 mm
l
Limitation
Drive Slowdown /
Lockout adjustable by
B
provider
Drive Lockout
C
The provider can determine the angle when the drive slowdown
1
should turn into a drive lockout.
AVIVA FX and TDX SP2 with Lifter
Limitation
Drive Slowdown
A
2 Components
Cause for Limitation
If lifter is raised
>50 mm
l
and if backrest angle is
1
>130° – <140°
l
If lifter is raised
>50 mm
l
and if backrest angle is
>140°
l
A
Cause for Limitation
If lifter is raised
>100 mm
l
9
