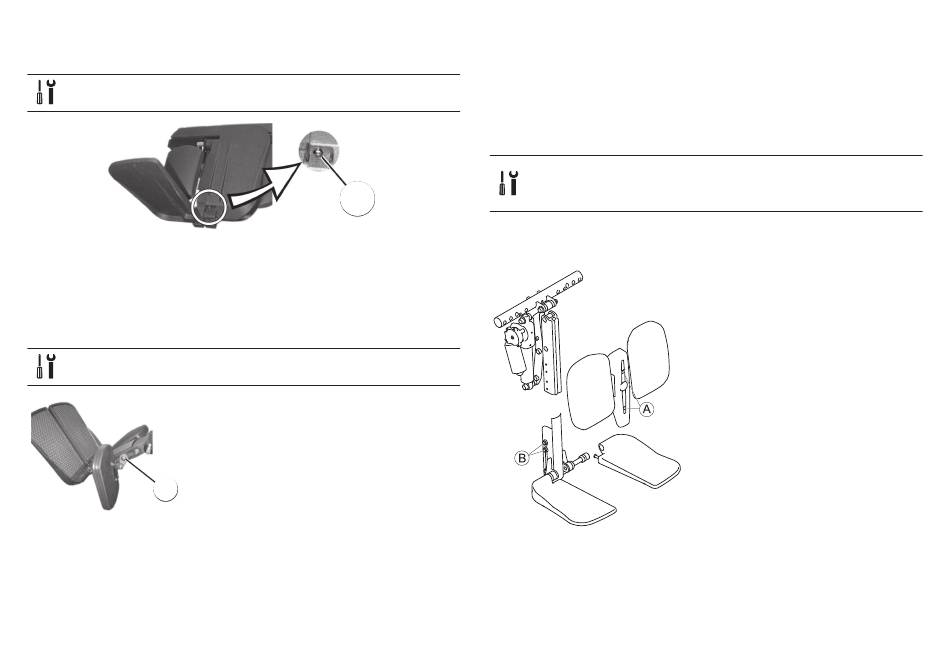

3.15.4 Setting Angle of Footplate
5/32 inch (4 mm) Allen key
l
1. Fold the footplates up in order to access the adjusting screws A.
2. Set the adjusting screws.
3. Fold the footplates down again.
3.15.5 Adjusting Calf Pads
3/16 inch (5 mm) Allen key
l
1. Fold the calf pad forward in order to
2. Loosen the bolt and adjust the calf
A
3. Re-tighten the bolt.
4. Fold the calf pad back.
1656515-G
A
access the bolt A.
pad to the required angle and height.
3.16 LNX Legrest
3.16.1 Setting Length of Legrest
If needed, the legrest can be pre-set to 83° or 97° instead of 90°.
Contact your Invacare provider.
4 mm Allen key
l
10 mm open-ended wrench
l
You can adjust the length of the legrests independently of one
another.
1. Remove screws A at the front
of legrest.
2. Remove cover together with
calf pads.
3. Loosen nuts B at the side of
legrest.
It may be necessary to remove
the nuts and move them from
one slot to the other.
4. Set desired length.
5. Re-tighten nuts.
6. Refit the calf pads and cover
and re-tighten screws.
3 Setup
35
