— Do not remove any small parts except to r eplace the
joystick knob.
— Do not leave removed joystick knob unattended.
— Closely supervise children, pets or people with p hysical /
mental disabilities.
CAUTION!
Risk of Injury or Damage
Remaining burrs and missing end caps after m odifications
on rods, such as shortened rod, can l ead to injury or
damage.
— Deburr cut after cutting excessive length.
— Re-install end cap after deburring.
— Check end cap for tight fitting.

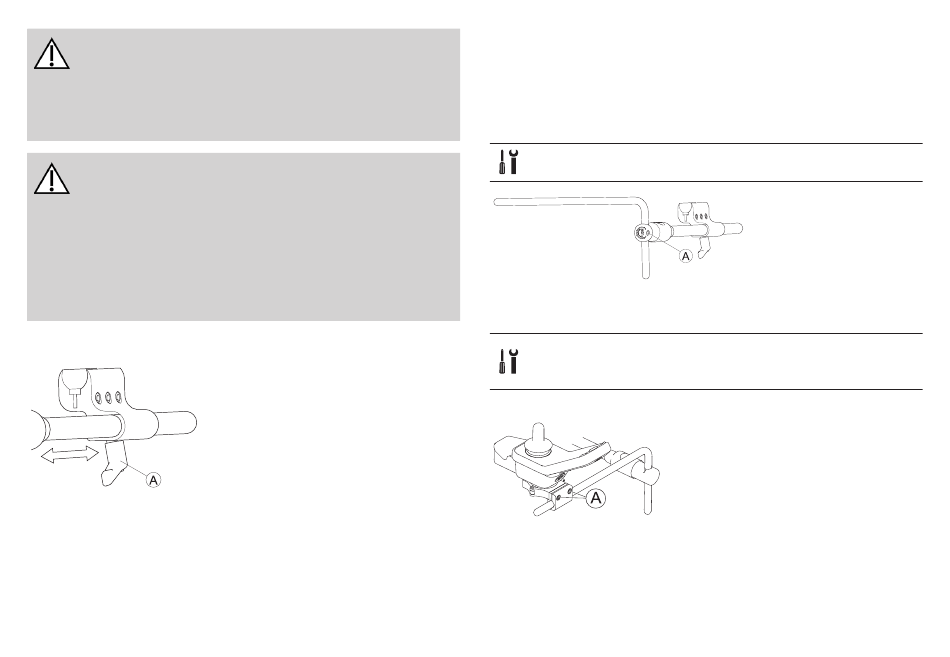

3.3.1 Adjusting Depth of Nucleus Midline Holder
1. Loosen lever A.
2. Shift nucleus midline holder to
3. Tighten lever.
3.3.2 Adjusting Height of Nucleus Midline Holder
You can adjust the height of the nucleus midline holder in two ways:
16
desired position.
Adjust it together with the armrest height. Refer to
l
corresponding armrest chapters, 3.8.1 Adjusting Armrest
Height, page 21.
Adjust the height of the nucleus midline holder only. Refer to
l
section below.
3/16 inch(5 mm) Allen key
l
3.3.3 Adjusting Remote / Display Position
4 mm Allen key
l
8 mm wrench
l
Tilting Remote (DLX-REM110, DLX-REM2XX, DLX-REM400)
1. Loosen screws A.
2. Position remote onholder.
3. Tighten screws.
Fig. 3-1 Example of DLX-REM400 adjustment. DLX-REM110, DLX-REM211
and DLX-REM216 are adjusted the same way.
1. Loosen screw A.
2. Adjust nucleus to
desired height.
3. Tighten screw.
