Modulite
The legrest with foot platform is adjusted the same way.

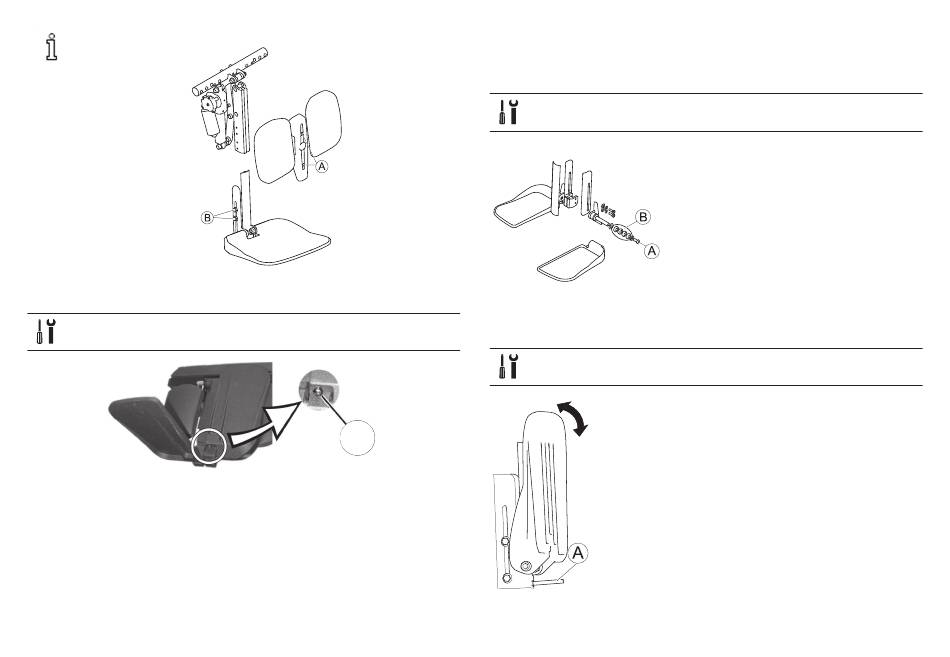

3.16.2 Setting Angle of Footplate
5/32 inch (4 mm) Allen key
l
1. Fold the footplates up in order to access the adjusting screws A.
2. Set the adjusting screws.
3. Fold the footplates down again.
3.16.3 Adjusting Footplate Width
The footplate width is adjusted via spacers:
36
Set spacers on the inside to increase width.
l
Set spacers on the outside to decrease width.
l
Each spacer increases or decreases the width by 1/4" (6.35 mm).
3.16.4 Setting Angle of Foot Platform
A
6 mm Allen key
l
1. Remove screw A.
2. Remove spacers B and footplate.
3. Set spacers on the inside as
needed.
4. Add footplate.
5. Set spacers on the outside as
needed.
6. Re-tighten screw.
5/32 inch (4 mm) Allen key
l
1. Fold the foot platform up in order to access the
adjusting screw A.
2. Set the adjusting screw.
3. Fold the foot platform down again.
