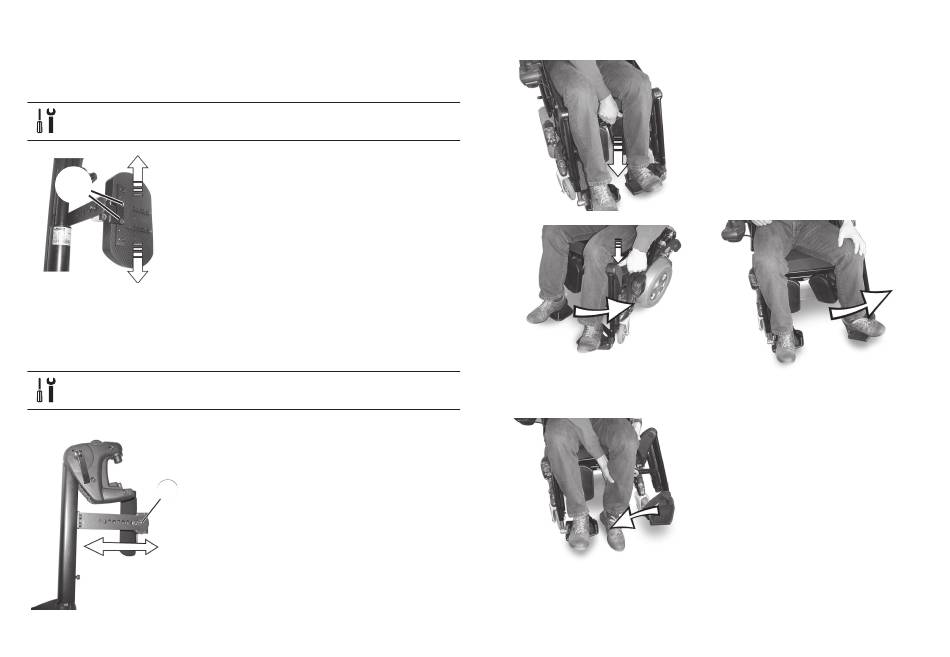

3.20.4 Adjusting Calf Pads
Adjusting Height
4 mm Allen key
l
A
Adjusting Depth
The depth of the calf pad can be adjusted via the holding plate. T he
holding plate hole combinations allow 5 different depth settings.
10 mm wrench
l
1. Remove nut A.
2. Adjust to the desired depth. Observe
A
3. Screw the nut back on and tighten.
1656515-G
1. Loosen the screws A.
2. Adjust to the desired position.
3. Re-tighten the screws.
that the round holes a re intended for
the calf pad retaining screw and the
oblong holes f or the aglet without
thread.
Unlocking and Swivelling Calf Pad Backward
1.
2.
Unlock the legrest and swivel outward.
The calf pad swivels b ackward on its own.
3.
3 Setup
Press t he calf pad straight down.
Lift leg o ver the heel strap and
place on the ground.
