Width-Adjustable Backrest
6 mm Allen key
l
3. Insert and tighten screw.
Ensure you insert screw through one of holes of backrest
bracket. Screw must be visible on inside of bracket and screw
head must be flush with bracket.
Simple Backrest
6 mm Allen key
l

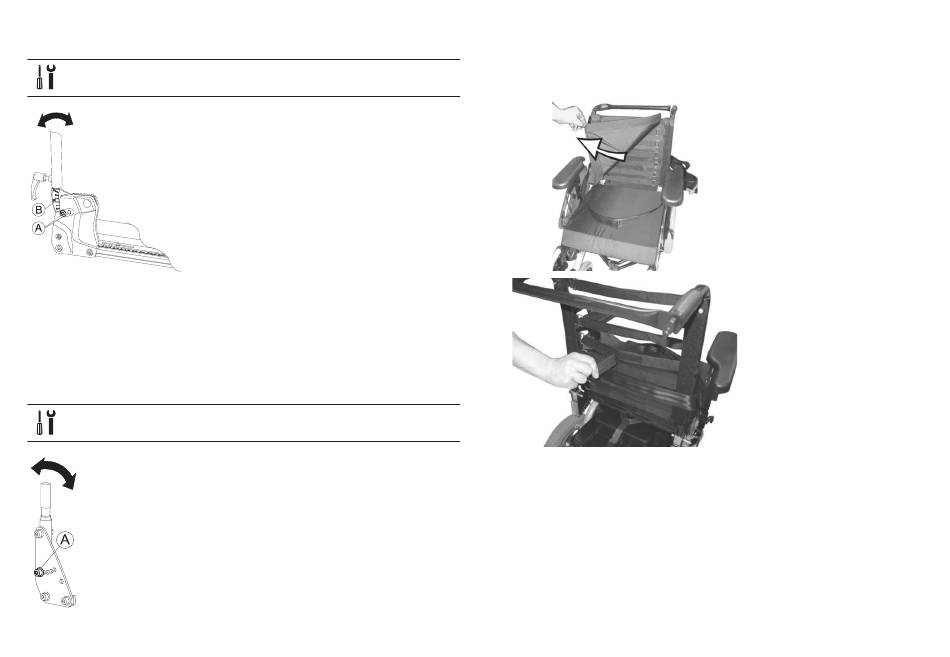

1. Remove middle backrest screw A on both sides.
2. Adjust desired backrest angle in 7.5° steps.
Ensure that you set same angle on both sides.
3. Insert and tighten screw.
28
1. Remove upper backrest screw
A on both sides.
2. Adjust desired backrest angle
in 3.8° steps.
Use scale B on backrest for
this purpose. Ensure that you
set same angle on both sides.
3.10.4 Adjusting Tension Adjustable Backrest Upholstery
1.
2.
3. Replace backrest cushion.
3.11 Adjusting Seat
3.11.1 Adjusting Seat Width
The telescopic seat support can be adjusted in four stages. The seat
width can thus be adjusted together with the adjustable seat plate or
the adjustable sling seat.
Remove backrest cushion
(attached with hook–and–
loop straps) by pulling it up
and off to access
adjustment straps.
Adjust tension of individual
straps as desired.
