Modulite
3.20 P owered Elevating Legrests (ADE Legrests)
3.20.1 Swivelling Legrest Outward and / or Removing

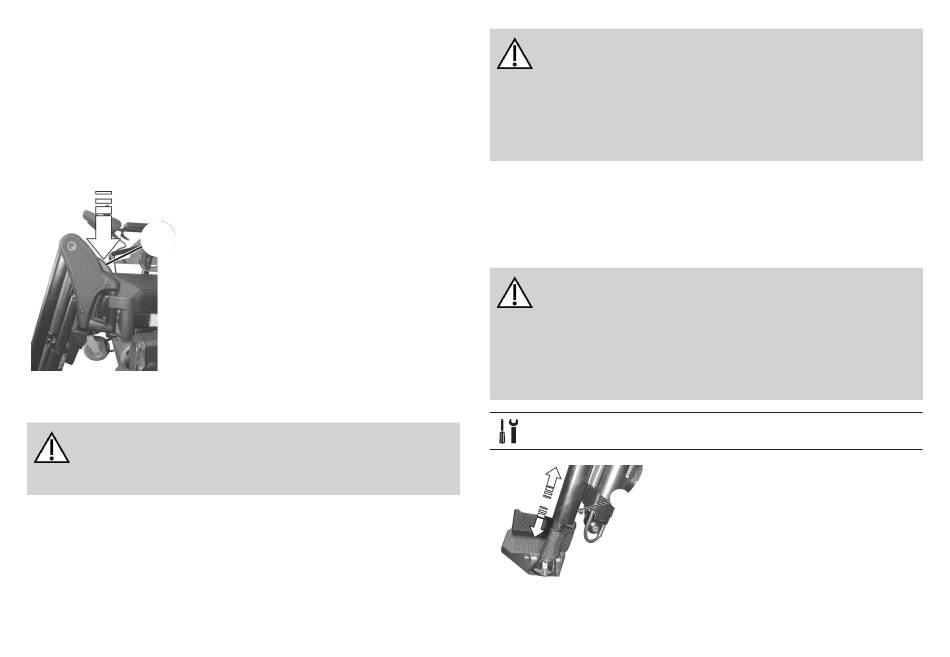

The small unlocking button is located on the upper section of the
legrest. When the legrest is unlocked, it can be swivelled inward or
outward when getting into wheelchair as well as being removed
completely.
A
1. Press the unlocking button A and
2. Remove the legrest in an upward
3.20.2 Setting Angle
CAUTION!
Risk of crushing
— Do not reach inside the swivelling range of the l egrest.
48
swivel the legrest outward.
direction.
CAUTION!
Risk of injury due to incorrect adjustment of the
footrests and legrests
— Before and during every journey it is imperative t o
ensure that the footrests contact neither the c astor
wheels nor the ground.
The electrically height-adjustable legrests are operated using the
remote. Refer to the separate user manual for your remote for more
information.
3.20.3 Adjusting Length of Legrest
CAUTION!
Risk of injury due to incorrect adjustment of the
footrests and legrests
— Before and during every journey it is imperative t o
ensure that the footrests contact neither the c astor
wheels nor the ground.
10 mm wrench
l
A
1. Loosen the screw A.
2. Adjust to the desired length.
3. Re-tighten the screw.
1656515-G
