3.5 Adjusting Swing-Away Display Holder
3 mm Allen key
l

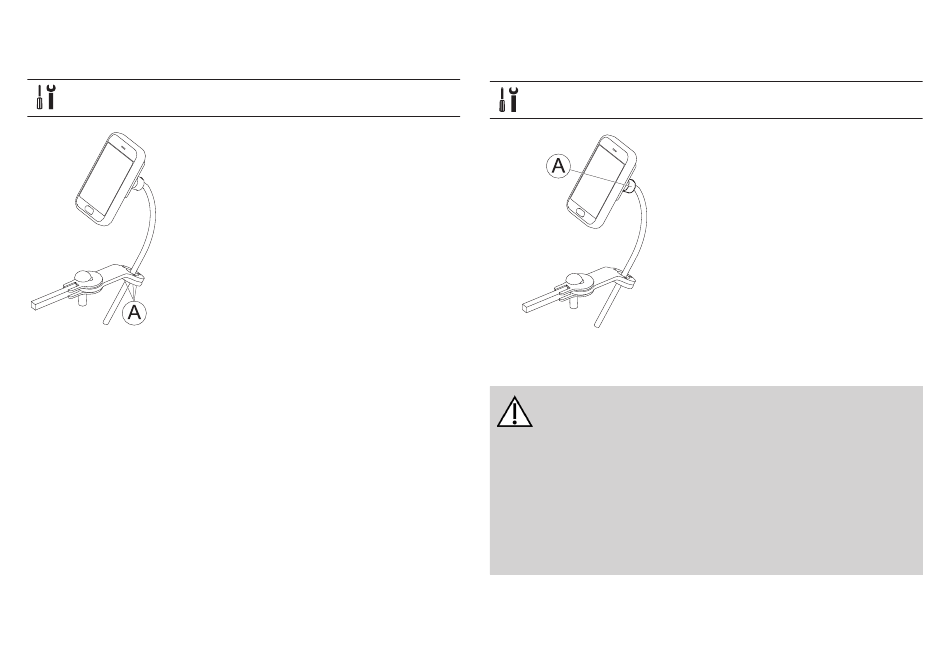

Adjusting Holder Height
1. Loosen screws A.
2. Position holder to desired height.
3. Tighten screws.
Adjusting Holder Orientation
The holder can be turned through 360 degrees.
1. Loosen screws A.
2. Adjust holder orientation.
3. Tighten screws.
1656515-G
Adjusting Display Orientation
The display can be turned through 360 degrees.
18 mm wrench
l
3.6 Adjusting Manual Chin Control
WARNING!
Risk of Injury or Damage
Loose small parts can lead to choking hazard that may result
in injury or death.
— Do not remove any small parts except to r eplace the
joystick knob.
— Do not leave removed joystick knob unattended.
— Closely supervise children, pets or people with p hysical /
mental disabilities.
1. Loosen clamping bush A.
2. Adjust display orientation.
3. Tighten clamping bush.
