3.16.5 Adjusting Calf Pads
Risk of damage to the power wheelchair
— After changing the configuration of the calf pads make
sure that the calf pads contact neither the castors nor
the seat plate when adjusting the legrest angle.
Calf pads may be adjusted independently on their respective mounting
bracket using the mounting screws at the rear of the calf pads. Calf
pads may be adjusted (for depth, height & angle) to achieve a variety
of different configurations. The independent pad adjustments provide
optimal positioning and comfort for end users - sample configurations
are illustrated below.

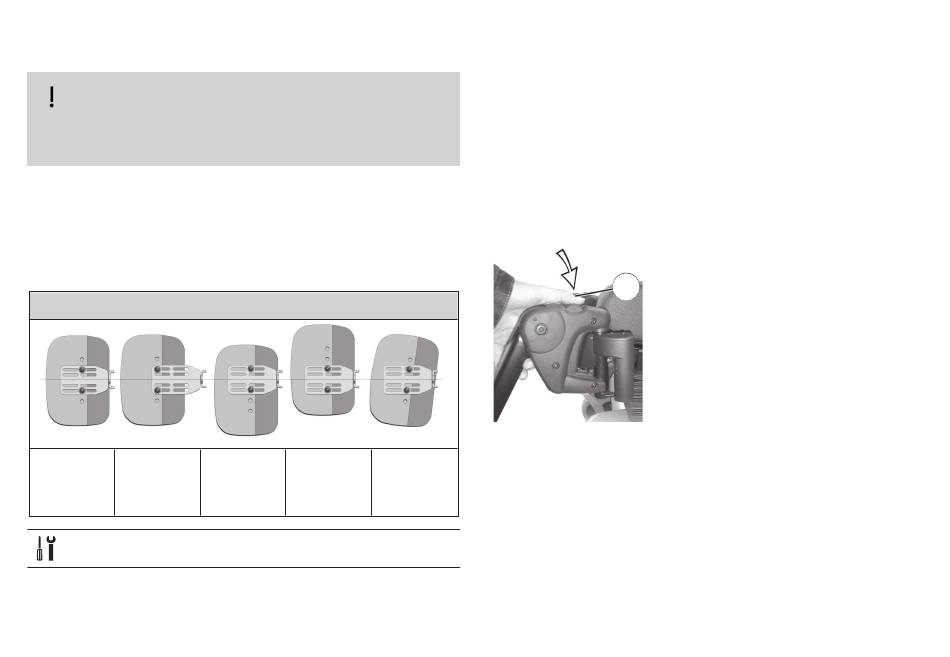

Calf Pad Adjustment — Sample Configurations
Extended
centred Position
(max.)
4 mm Allen key
l
1. Fold the calf pad forward in order to access the bolts.
2. Loosen the bolts and remove them if necessary.
1656515-G
Lowered Raised
Angled
Offset Offset
3. Adjust the calf pad to the required height and width.
4. Re-tighten the bolts.
5. Fold the calf pad back.
3.17 Vari-F Legrest
3.17.1 Swivelling Legrest Outward and / or Removing
The small unlocking button is located on the upper section of the
legrest. When the legrest is unlocked, it can be swivelled inward or
outward when getting into the wheelchair as well as being removed
completely.
A
1. Press the unlocking button A and
2. Remove the legrest in an upward
swivel the legrest outward.
direction.
