Modulite
It is easier to adjust the angle of the seat when there is nobody
sitting in the wheelchair.

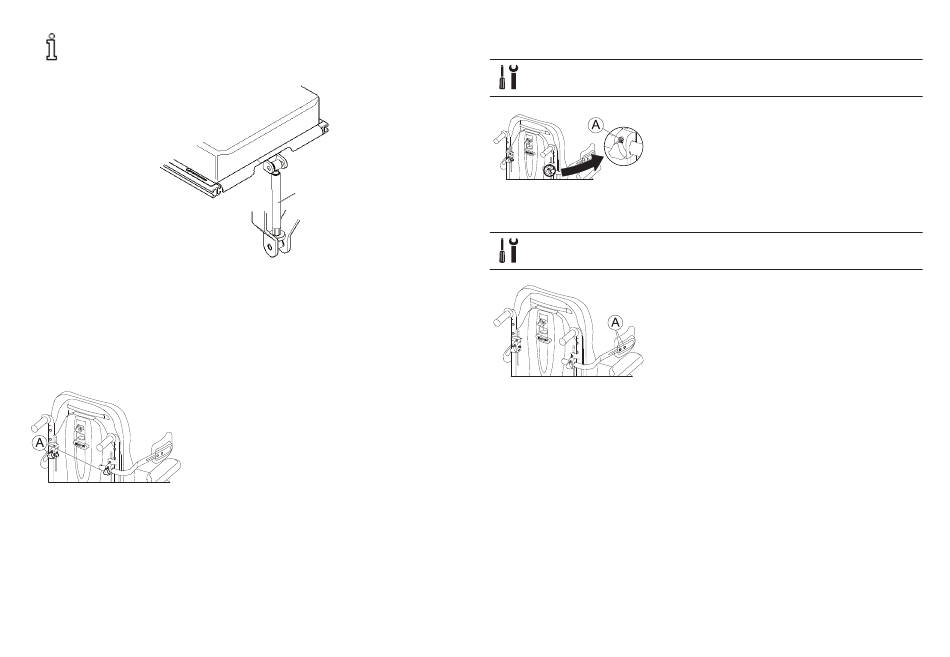

The figure shows the position of the spindle A for manual seat angle
adjustment.
3.12 Adjusting Lateral Trunk Support
Adjusting Width
1. Loosen knobs A.
2. Adjust component to desired
3. Tighten knobs.
30
A
position.
Adjusting Height
5 mm Allen key
l
1. Loosen screws A.
2. Adjust component to desired
3. Tighten screws.
Adjusting Depth
5 mm Allen key
l
1. Loosen screws A.
2. Adjust component to desired
3. Tighten screws.
position.
position.
1656515-G
