Modulite

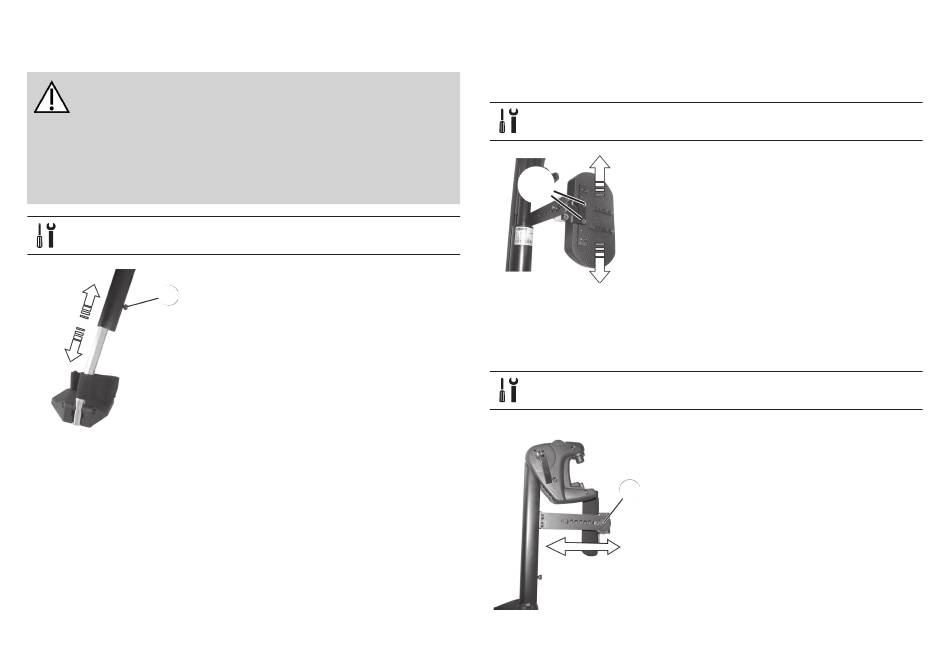

3.19.3 Adjusting Length of Legrest
CAUTION!
Risk of injury due to incorrect adjustment of the
footrests and legrests
— Before and during every journey it is imperative t o
ensure that the footrests contact neither the c astor
wheels nor the ground.
5 mm Allen key
l
A
46
1. Loosen the screw A.
2. Adjust to the desired length.
3. Re-tighten the screw.
3.19.4 Adjusting Calf Pads
Adjusting Height
4 mm Allen key
l
A
Adjusting Depth
The depth of the calf pad can be adjusted via the holding plate. T he
holding plate hole combinations allow 5 different depth settings.
10 mm wrench
l
1. Remove nut A.
2. Adjust to the desired depth. Observe
A
3. Screw the nut back on and tighten.
1. Loosen the screws A.
2. Adjust to the desired position.
3. Re-tighten the screws.
that the round holes a re intended for
the calf pad retaining screw and the
oblong holes f or the aglet without
thread.
1656515-G
