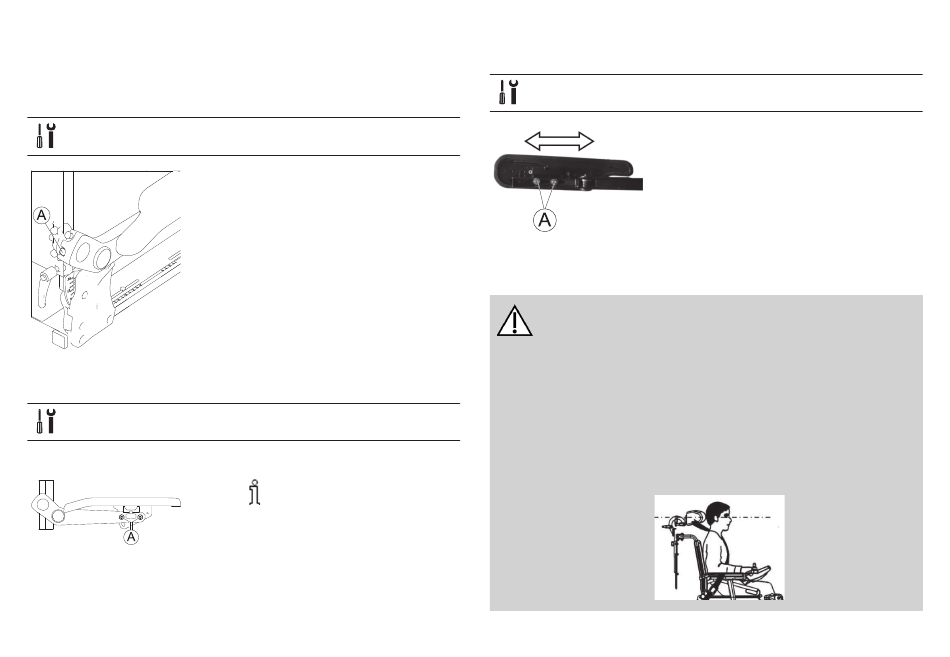

3.8.4 Changing Resistance (Flip-up / Following Armrest)
The movement of the flip-up and following armrests can be set to have
greater or less resistance.
5 mm Allen key
l
1. To make armrest easier to move,
2. To make armrest more difficult to
3.8.5 Adjusting Arm Pad Angle (Flip-Up/Following Armrest)
5 mm Allen key
l
1. Loosen screws A.
2. Adjust component to desired
3. Tighten screws.
1656515-G
loosen screw A.
move, tighten screw A.
Do not remove screws A.
position.
3.8.6 Adjusting Arm Pad Position (Flip-Up Armrest)
5 mm Allen key
l
1. Put component in vertical position.
2. Loosen interior screws A.
3. Adjust component to desired position.
4. Tighten screws.
3.9 Adjusting the Headrest
CAUTION!
Risk of injury during use of the power wheelchair a s
a vehicle seat if a headrest is wrongly a djusted or
not installed
This can cause the neck to be hyperextended d uring
collisions.
— A headrest must be installed. The headrest o ptionally
supplied for this power wheelchair by I nvacare is
perfectly suitable for use during t ransport.
— The headrest must be adjusted to the user's e ar height.
Make sure Nordlock washers used are
re-inserted.
