Adjusting Maxx Resolve Swing-Away Remote Holder - Invacare Modulite User Manual

Modulite

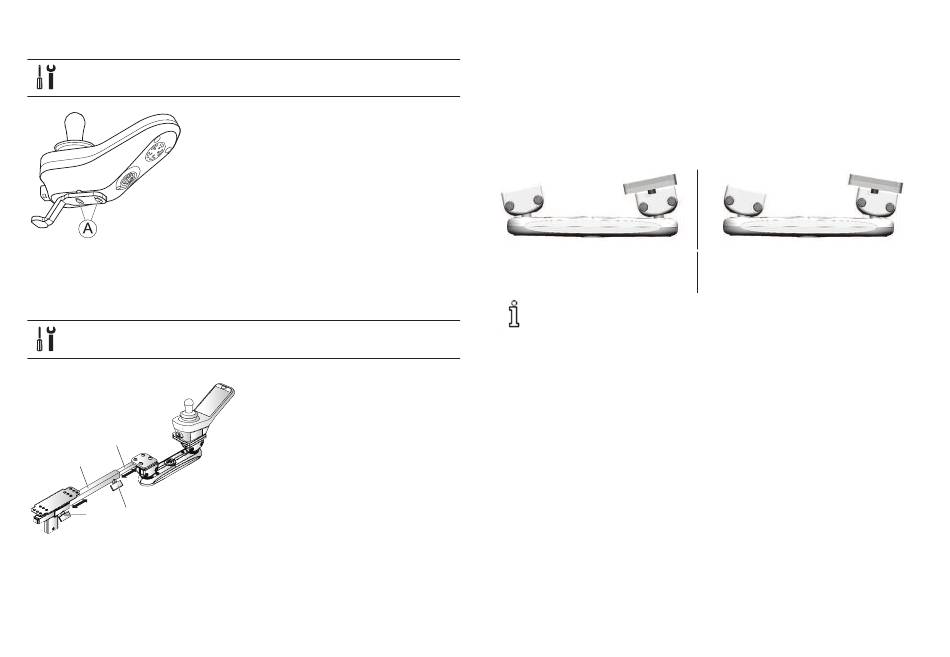

Adjusting Remote Position
3 mm Allen key
l
1. Loosen screws A.
2. Adjust component to desired
3. Tighten screws.
3.2.3 Adjusting Maxx Resolve Swing-Away Remote Holder
Adjusting Remote Depth
5 mm Allen key
l
D
B
A C
14
position.
1. Loosen wing screw A to
adjust depth of tube B.
Tighten screws when desired
position is reached.
and / or
2. Loosen wing screw C to
adjust depth of tube D.
Tighten lever when desired
position is reached.
Height and Angle Adjustment
The height / angle of the Maxx Resolve Remote Holder is adjusted via
two ball clamp assemblies on the swing away mechanism. The rear ball
clamp assembly is attached to the remote tube, on the front ball clamp
assembly the remote is mounted. Both ball clamp assemblies can be
independently adjusted to position the remote at the height and / or
angle that fits the user's needs.
Ball clamp assemblies mounted
upwards
When adjusting the angle of the ball clamp assemblies
upwards, the body of the swing away mechanism becomes
angled upward. This upward angle means that when the
remote swings outward (when mounted on the right armrest)
or inward (when mounted on the left armrest), it will swing-
away to a lower position. The opposite effect applies when the
angle of the ball clamp assemblies is adjusted downwards.
Ball clamp assemblies mounted
downwards
1656515-G
