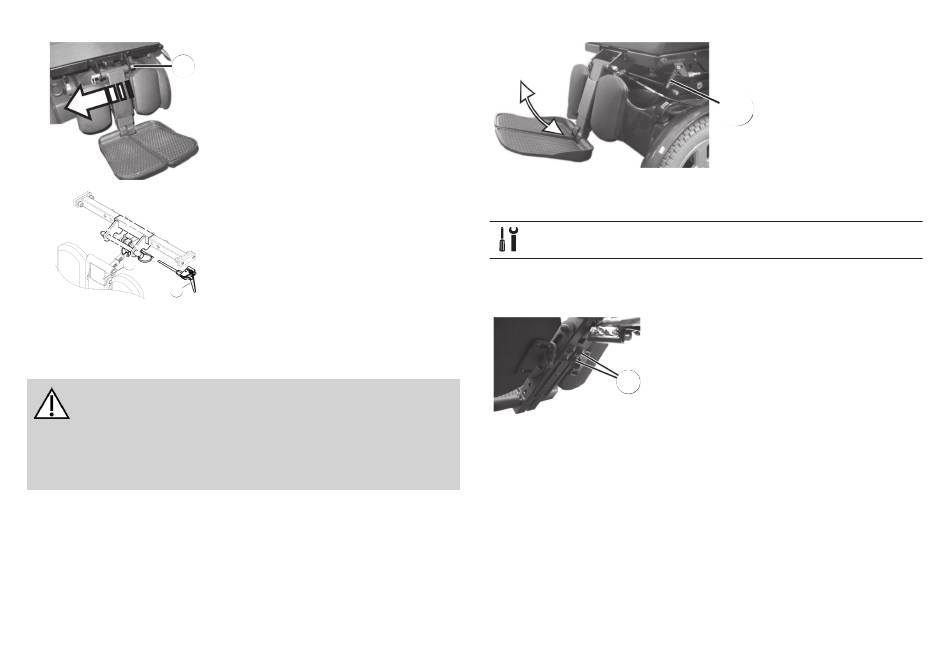

3.15.2 Setting Angle of Legrest
CAUTION!
Risk of injury
If the legrest is not secured and the lever A is pulled, the
legrest will drop suddenly, which could cause an injury.
— Secure the legrest before pulling the lever.
34
Remove removable axle A.
Hold legrest securely and pull lever B.
3.15.3 Setting Length of Legrest
3/16 inch(5 mm) Allen key
l
You can adjust the length of the legrests independently of one
another.
1. Release the bolts A on the rear of the
A
2. Set the desired length.
3. Re-tighten the bolts.
1. Hold the legrest
securely.
A 2. Pull the lever A.
3. Push the legrest
into the required
position.
legrest.
