ASL Components on Nucleus Midline Holder Only
5/32 inch (4 mm) Allen key
l
1. Loosen screw A.
2. Position ASL component on holder.
3. Tighten screw.
Fig. 3-4 Graphic serves as an example.
3.4 Adjusting Swing-Away Mechanism
WARNING!
Risk of Injury or Damage
Loose small parts can lead to choking hazard that may result
in injury or death.
— Do not remove any small parts except to r eplace the
joystick knob.
— Do not leave removed joystick knob unattended.
— Closely supervise children, pets or people with p hysical /
mental disabilities.
18
CAUTION!
Risk of Injury or Damage
Remaining burrs and missing end caps after m odifications
on rods, such as shortened rod, can l ead to injury or
damage.
— Deburr cut after cutting excessive length.
— Re-install end cap after deburring.
— Check end cap for tight fitting.

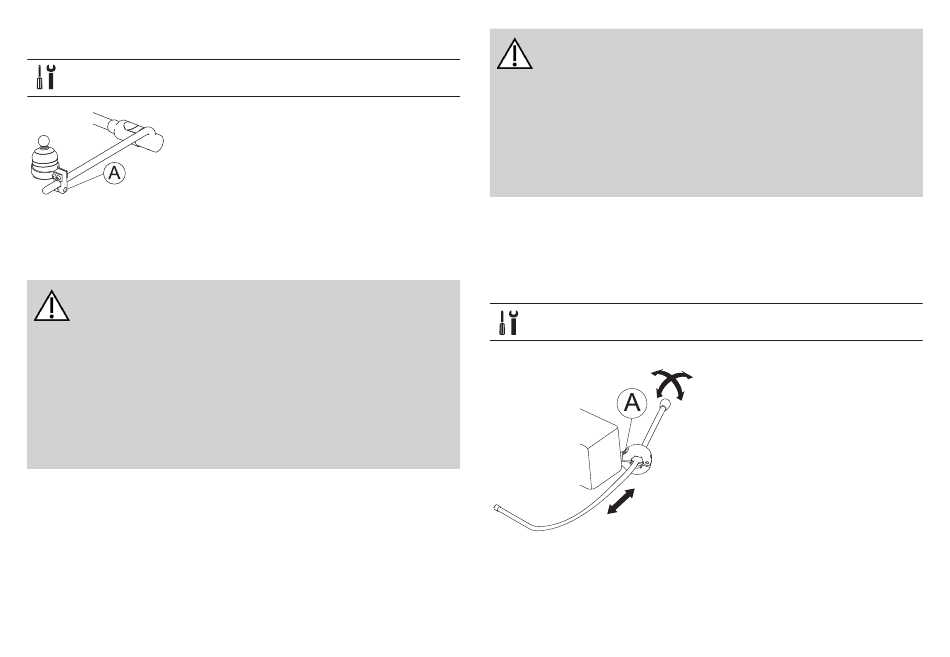

The swing-away mechanism can be used for different options such as:
PROTON wings of head array
l
Extremity control joystick for chin control
l
Egg switch
l
5/32 inch (4 mm) Allen key
l
Adjusting Depth
1. Loosen screw A.
2. Adjust rod to desired depth.
3. Tighten screw.
Adjusting Position
The swing-away mechanism can be
turned through 360 degrees.
1. Loosen screw A.
2. Adjust to desired position.
3. Tighten screw.
