Setting End Stop Of Legrest - Invacare Modulite User Manual

2.
Hit the knob to release the locking
mechanism.
3.
Set the desired angle.
4.
Turn the knob clockwise to tighten it.
1656515-G

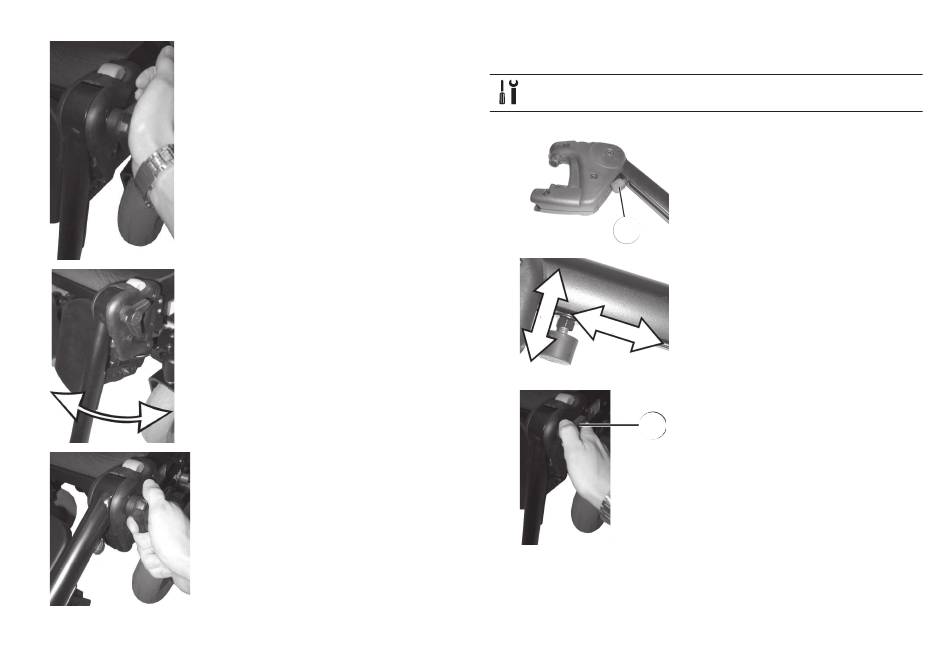

3.18.3 Setting End Stop of Legrest
10 mm wrench
l
1.
A
2.
B
C
3.
D
The end position of the legrest is
determined by means of a rubber stop
A.
The rubber stop can be screwed in or
out B or pushed up or down C.
Loosen the locking knob D counter-
clockwise at least one turn.
3 Setup
41
