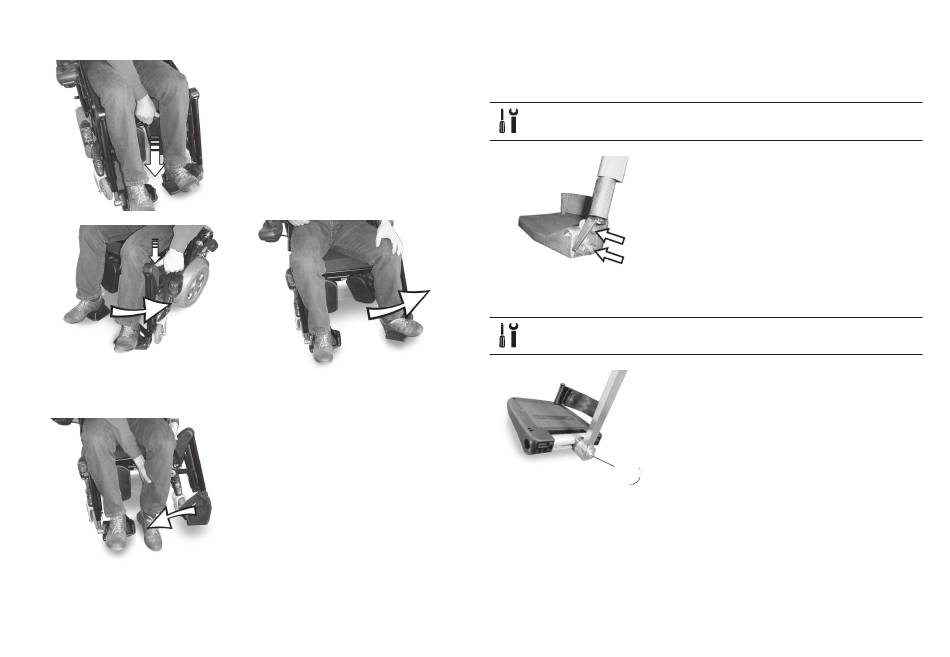

Unlocking and Swivelling Calf Pad Backward
1.
2.
Unlock the legrest and swivel outward.
The calf pad swivels b ackward on its own.
3.
1656515-G
Press t he calf pad straight down.
Lift leg o ver the heel strap and
place on the ground.
3.19.5 Adjusting Footrests
Adjusting Angle–adjustable Footrests
5 mm Allen key
l
1. Loosen both set screws on the
2. Adjust to the desired angle.
3. Re-tighten the screws.
Adjusting Angle– and Depth–adjustable Footrests
5 mm Allen key
l
1. Loosen the set screw on the footrest
2. Adjust the footrest to the desired
A
3. Re-tighten the screw.
footrest.
A.
angle or depth.
