Invacare® Modulite
CAUTION!
Risk of Injury and Damage
Remaining burrs and missing end caps after
modifications on rods, such as shortened rod, can
lead to injury or damage.
– Deburr cut after cutting excessive length.
– Re-install end cap after deburring.
– Check end cap for tight fitting.

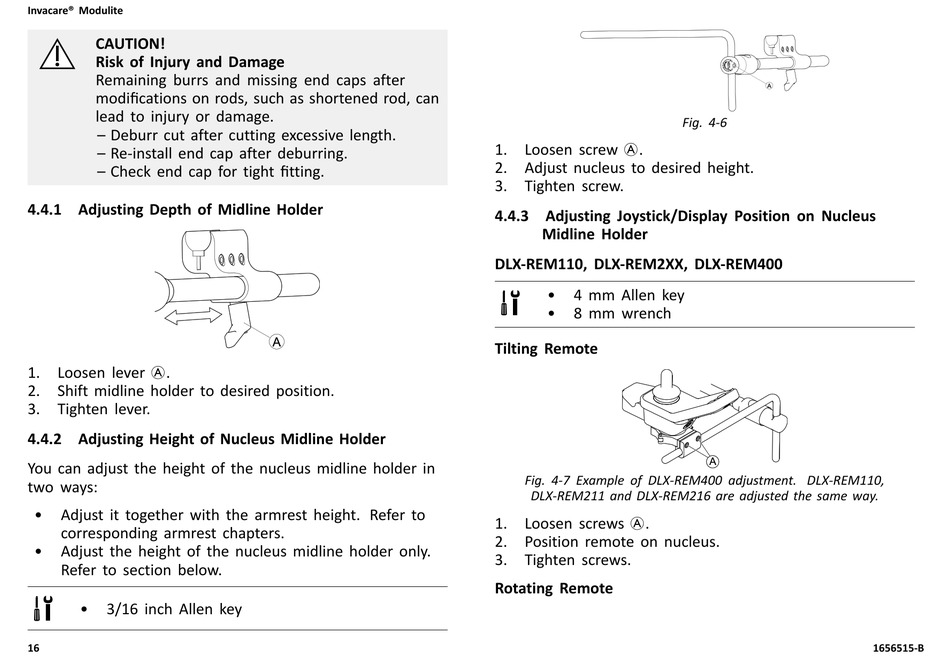

4.4.1 Adjusting Depth of Midline Holder

1. Loosen lever A.
2. Shift midline holder to desired position.
3. Tighten lever.

4.4.2 Adjusting Height of Nucleus Midline Holder

You can adjust the height of the nucleus midline holder in
two ways:
• Adjust it together with the armrest height. Refer to
corresponding armrest chapters.
• Adjust the height of the nucleus midline holder only.
Refer to section below.
• 3/16 inch Allen key
16
1. Loosen screw A.
2. Adjust nucleus to desired height.
3. Tighten screw.

4.4.3 Adjusting Joystick/Display Position on Nucleus

Midline Holder

DLX-REM110, DLX-REM2XX, DLX-REM400
• 4 mm Allen key
• 8 mm wrench
Tilting Remote
Fig. 4-7 Example of DLX-REM400 adjustment. DLX-REM110,
DLX-REM211 and DLX-REM216 are adjusted the same way.
1. Loosen screws A.
2. Position remote on nucleus.
3. Tighten screws.
Rotating Remote
Fig. 4-6
1656515-B
