Parameters Settings

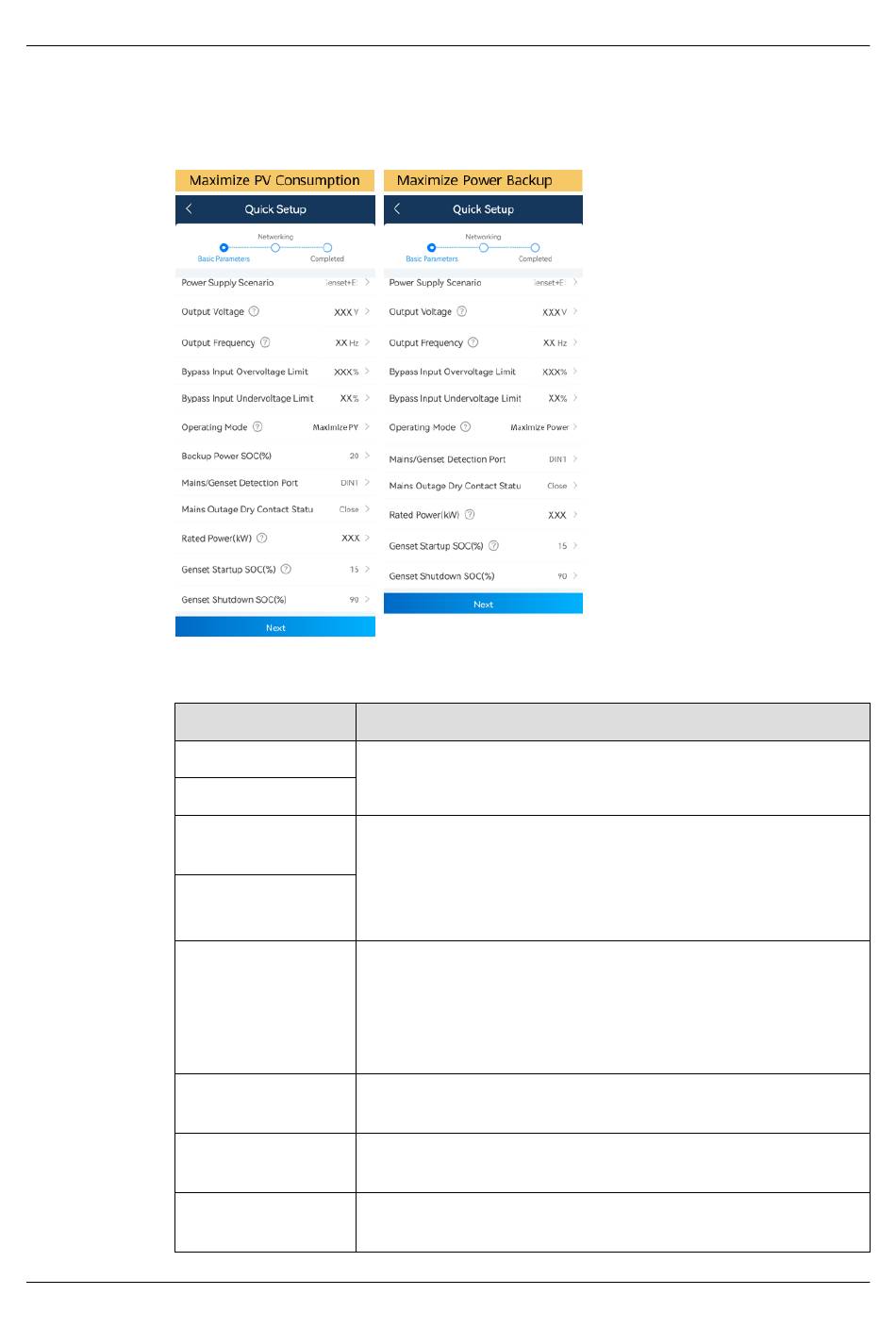

Figure 6-21 Setting basic parameters
Table 6-10 Basic parameters
Parameter
Output Voltage
Output Frequency
Bypass Input
Overvoltage Limit
Bypass Input
Undervoltage Limit
Operating Mode
Backup Power
SOC(%)
Mains/Genset
Detection Port
Mains Outage Dry
Contact Status
Issue 06 (2023-04-24)
Description
Set the output voltage and output frequency based on the
local power grid standards.
Set the bypass input overvoltage and undervoltage
protection thresholds. When the bypass input voltage
reaches the preset value, the system stops output
immediately and reports a bypass module protection
alarm.
Maximize PV Consumption: PV power is preferentially
used for loads.
Maximize Power Backup: The mains is preferentially used
to supply power to loads. At the same time, the mains and
PV system charge the ESSs until the ESSs are fully charged.
This parameter is available only when Operating Mode is
set to Maximize PV Consumption.
Select a mains/genset detection port.
Set the mains outage dry contact status.
