iSitePower-M (MAP05A1, MAB05B1)
User Manual

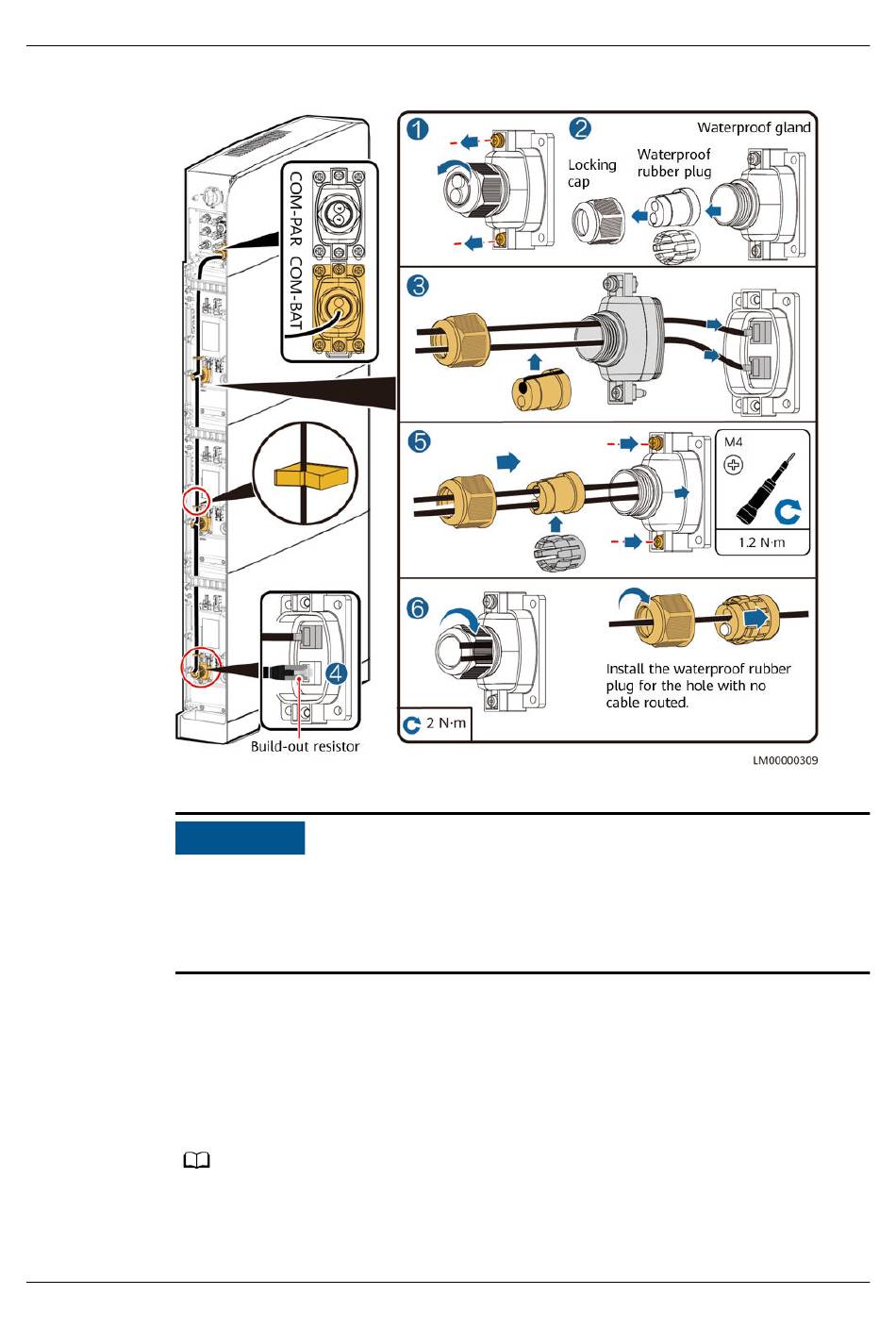

Figure 10-21 Installing battery signal cables
When a communications terminal is connected to a single network cable, the
waterproof rubber plug must be installed for the hole with no cable routed.
Otherwise, the waterproof performance may be affected and the device will be
damaged.
----End

10.3.3 Installing PV Input Power Cables

Step 1 Use a removal wrench to remove the waterproof gland from the PV input terminal
on the power module.
Step 2 Install the PV input power cables.
Issue 06 (2023-04-24)
NO TICE
NO TE
Take out the removal wrench from the decorative cover delivered with the product.
Copyright © Huawei Digital Power Technologies Co., Ltd.
10 Electrical Connections
116
