Step 2 Secure the battery module to the wall.

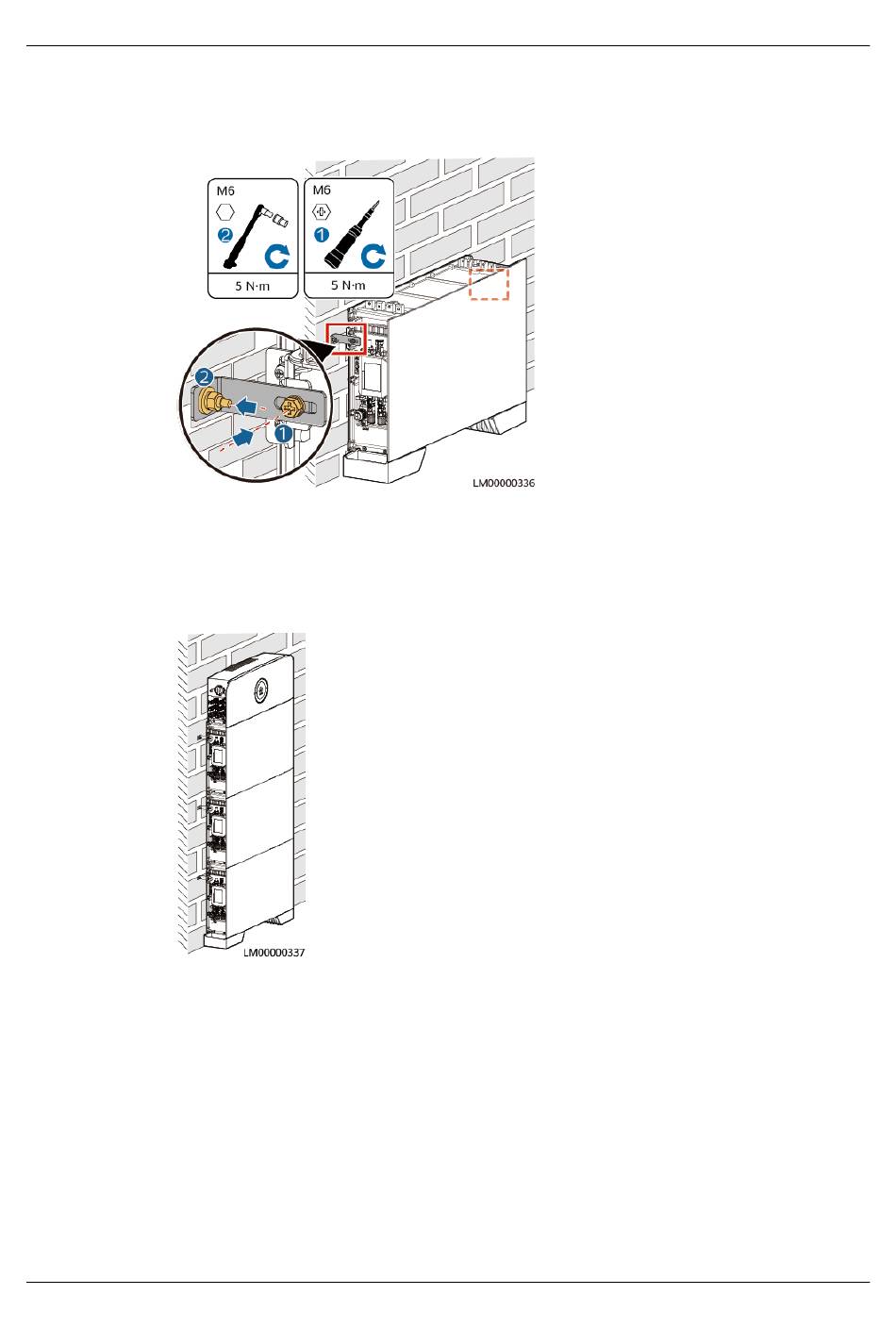

Figure 7-12 Securing the battery module
Step 3 Install the remaining battery modules and power module from bottom to top.
Each time a module is installed, tighten the screws on the left and right, and then
secure it against the wall.
Figure 7-13 Ground mounting completed
