Huawei SmartLi 3.0 Quick Start Manual

SmartLi 3.0
(Long-Term Backup Power)
Quick Guide
Installation Preparations
• Before installing the equipment, read the product documentation carefully to get
familiar with product information and safety precautions. Huawei shall not be liable
for any consequence caused by violation of the storage, transportation, installation,
and operation regulations specified in this document. Log in to the technical support
website to view the product documentation and safety precautions.
• The information in this document is subject to change without notice. Every effort has
been made in the preparation of this document to ensure accuracy of the contents, but
all statements, information, and recommendations in this document do not constitute
a warranty of any kind, express or implied.
• Only qualified personnel are allowed to perform operations on the equipment.
Operation personnel should understand the system, its working principles, and relevant
national/regional standards.
• Wear dedicated personal protective equipment during operations. Use dedicated
insulated tools during electrical operations.
• Do not store batteries at low SOC. Charge batteries in time by referring to section "Power-
on and Commissioning > Recharge Requirements for Batteries with Low SOC" in the user
manual. Otherwise, batteries may be damaged due to overdischarge.
• Before installing and commissioning batteries, prepare fire fighting facilities, such as fire
sand and carbon dioxide fire extinguishers, according to construction standards and
regulations. Before putting the battery room into operation, ensure that it is equipped
with a fire extinguishing system that complies with local laws and regulations, has been
constructed and commissioned, and can work in automatic or manual control mode.
Model Weight
SmartLi-614V-100Ah-F
SmartLi-537V-100Ah-F
SmartLi-460V-100Ah-F
SmartLi-384V-100Ah-F
< 800 kg
SmartLi-614V-100Ah-S
SmartLi-537V-100Ah-S
SmartLi-460V-100Ah-S
SmartLi-384V-100Ah-S
Air vent
Incoming cable glands
Battery circuit breaker
Monitoring interface unit
Battery control unit (BCU)
Fuse
Slots for battery modules
Issue: 05
Date: 2024-01-25
Unit: mm
1
Determine the cabinet installation position.
Draw mounting holes in the installation
Configuration type
position according to the drawing.
With an LCD (master
cabinet)
Without an LCD (slave
cabinet)

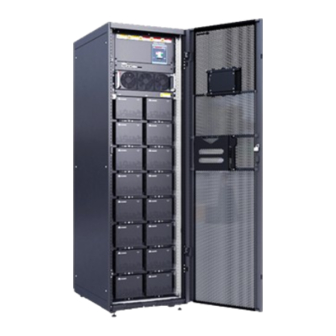

Cabinet Exterior
Communications
cable outlet
Monitoring display unit
(MDU, available only on
the master cabinet)
Carbon monoxide gas
sensor (optional)
Document holder
Dimensions
Installing Cabinets
Secured Installation
Unit: mm
1
2
Use a hammer drill to drill holes for installing expansion bolts and then install
expansion bolts in the holes.
M12 bolt
Spring washer
Knock the expansion
Flat washer
bolt into the hole until
the expansion sleeve
Expansion
Concrete floor
completely fits into
sleeve
the hole. The
expansion sleeve must
be completely buried
Expansion nut
under the ground to
facilitate subsequent
installation.
3
靠墙安装
Remove the four plugs from the bottom of the cabinet. Insert expansion bolts into
the expansion bolt holes in the floor, and tighten the expansion bolts.
Non-Secured Installation
a. Wheel the cabinet to the installation position.
b. Adjust the anchor bolts until the castors hang in the air and the anchor bolts bear
all of the cabinet weight. Check the cabinet levelness using a level instrument.
