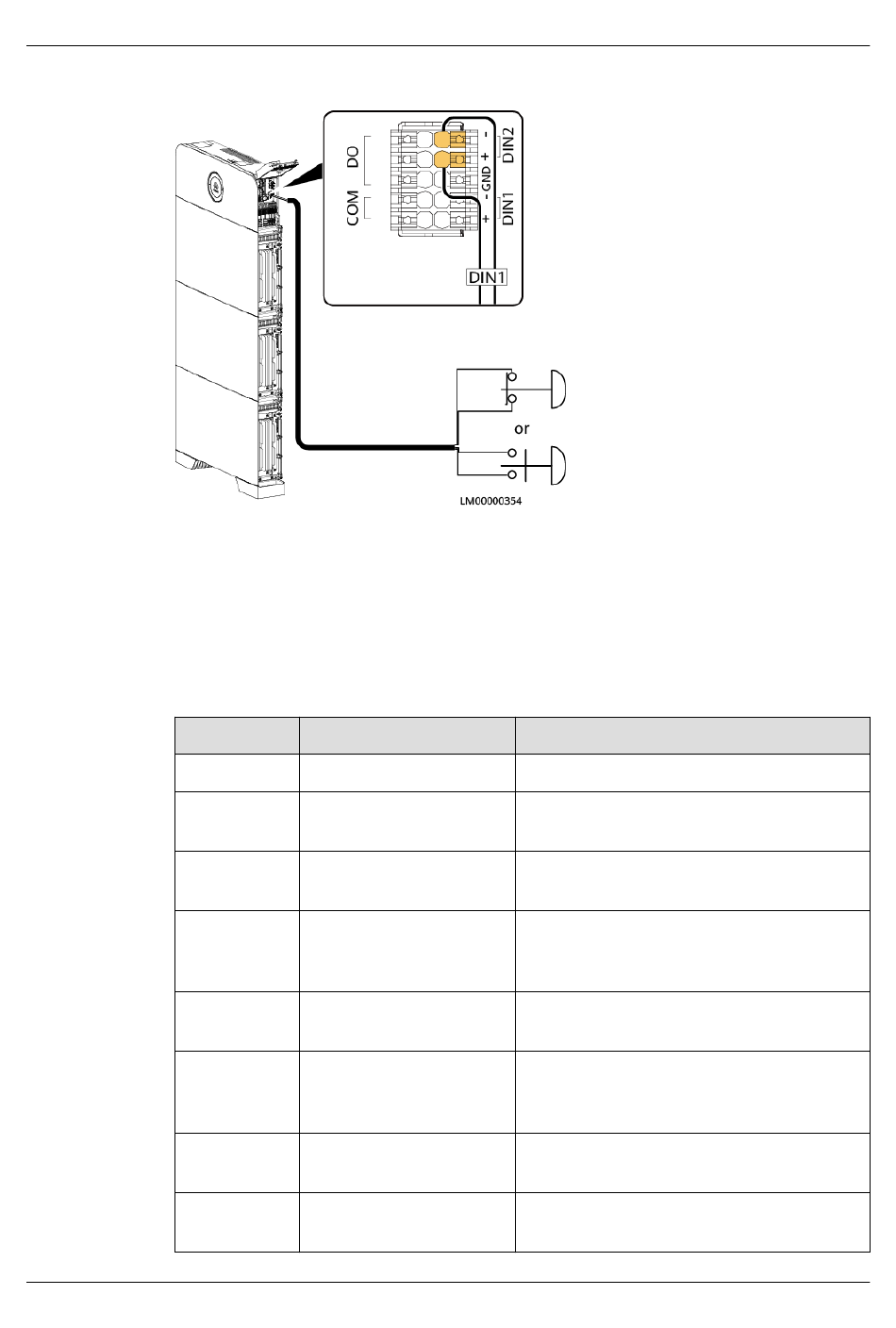

Figure 10-70 Connecting a remote EPO cable

10.10 Installation Verification

10.10.1 Verifying the Installation

Table 10-1 Check items and acceptance criteria
No.
1
2
3
4
5
6
7
8
Issue 06 (2023-04-24)
Check Item
Product installation
Cable routing
Cable bonding
Grounding
Switches
Short circuit at AC
input and output ports
Unused terminals and
ports
Removal wrench
Copyright © Huawei Digital Power Technologies Co., Ltd.
10 Electrical Connections
Expected Result
The installation is correct and reliable.
Cables are routed properly as required
by the customer.
Cable ties are evenly distributed and no
burr exists.
Power cables, signal cables, and PE
cables are correctly and securely
connected.
The DC SWITCH and all switches
connected to the product are OFF.
The live (L) wire and neutral (N) wire
of an AC power cable are correctly
connected.
Unused terminals and ports are locked
by waterproof glands.
The removal wrench is placed in the
original position in the decorative cover.
