Procedure
Step 1 Install AC input power cables for the parallel box.

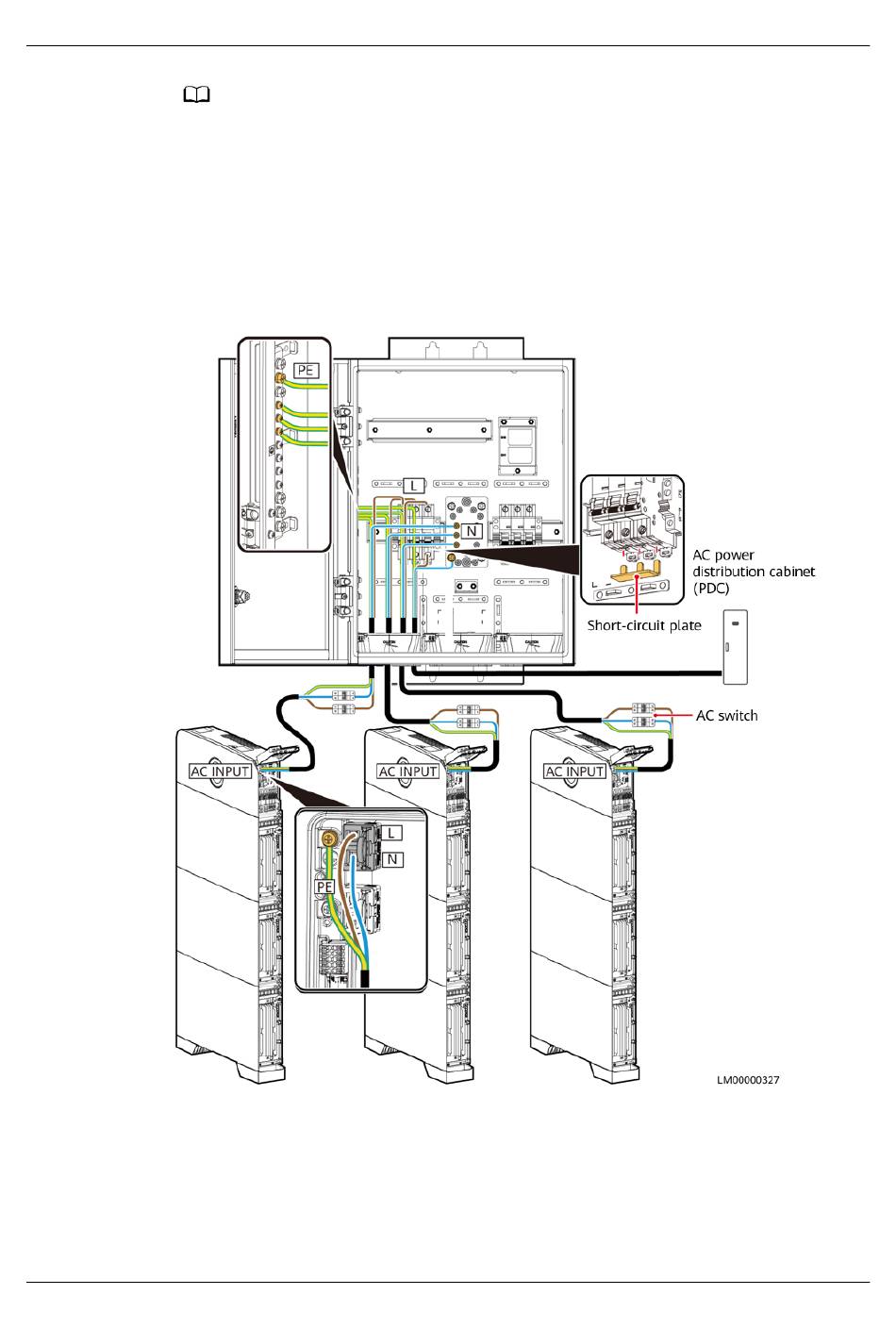

Figure 10-63 Installing AC input power cables for the parallel box
----End
Issue 06 (2023-04-24)
NO TE
● Install short-circuit plates for AC input circuit breakers.
● The three cables from the AC input circuit breaker to the power modules must be of the
same length.
