iSitePower-M (MAP05A1, MAB05B1)
User Manual

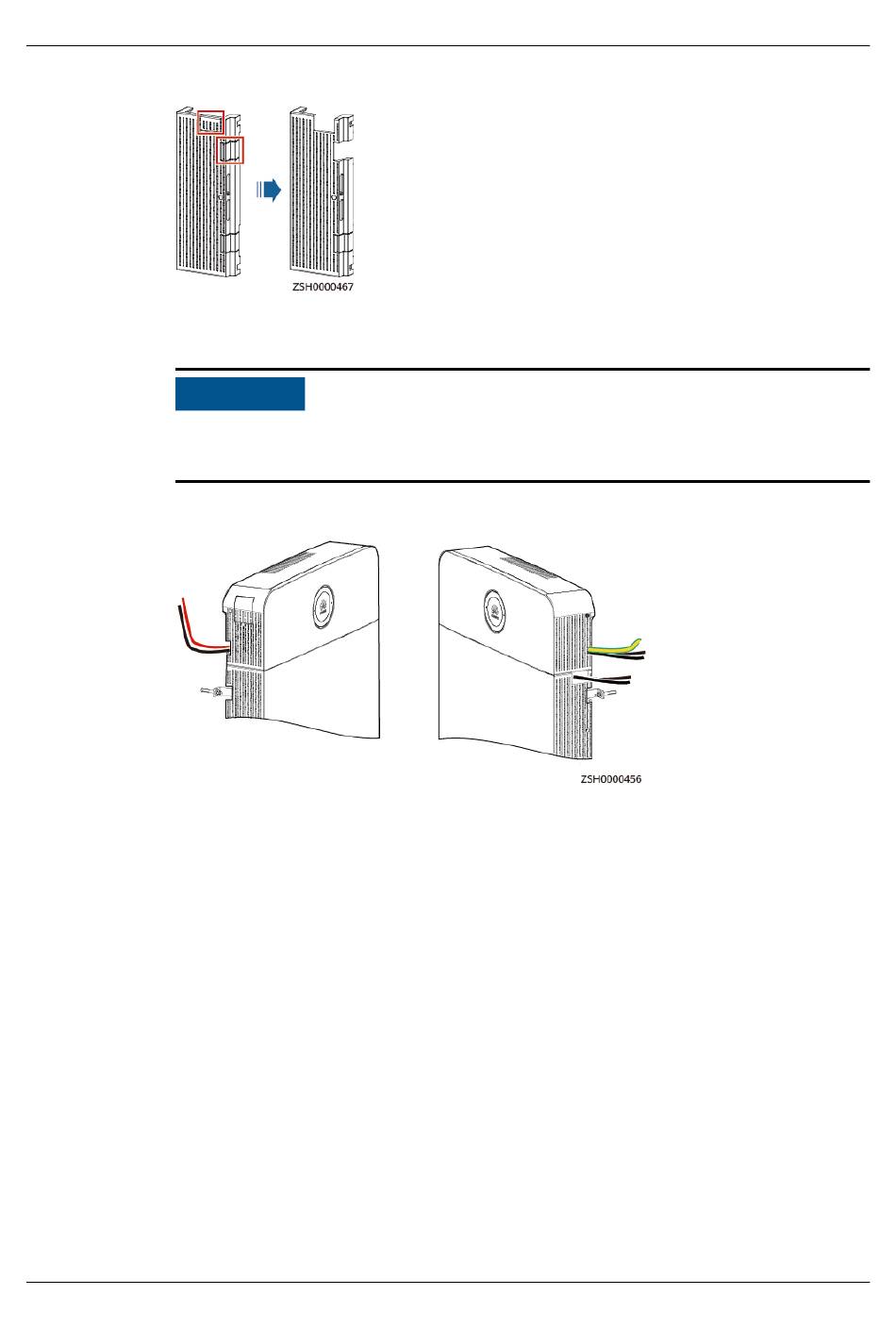

Figure 10-74 Cutting the right decorative cover
Step 3 Route the cables out of the cable holes.
The outlet positions shown in the figure are for reference only. Select an
appropriate cable outlet based on the actual cable thickness.
Figure 10-75 Cable routes
Step 4 Tighten the screws.
Issue 06 (2023-04-24)
NO TICE
Copyright © Huawei Digital Power Technologies Co., Ltd.
10 Electrical Connections
162
