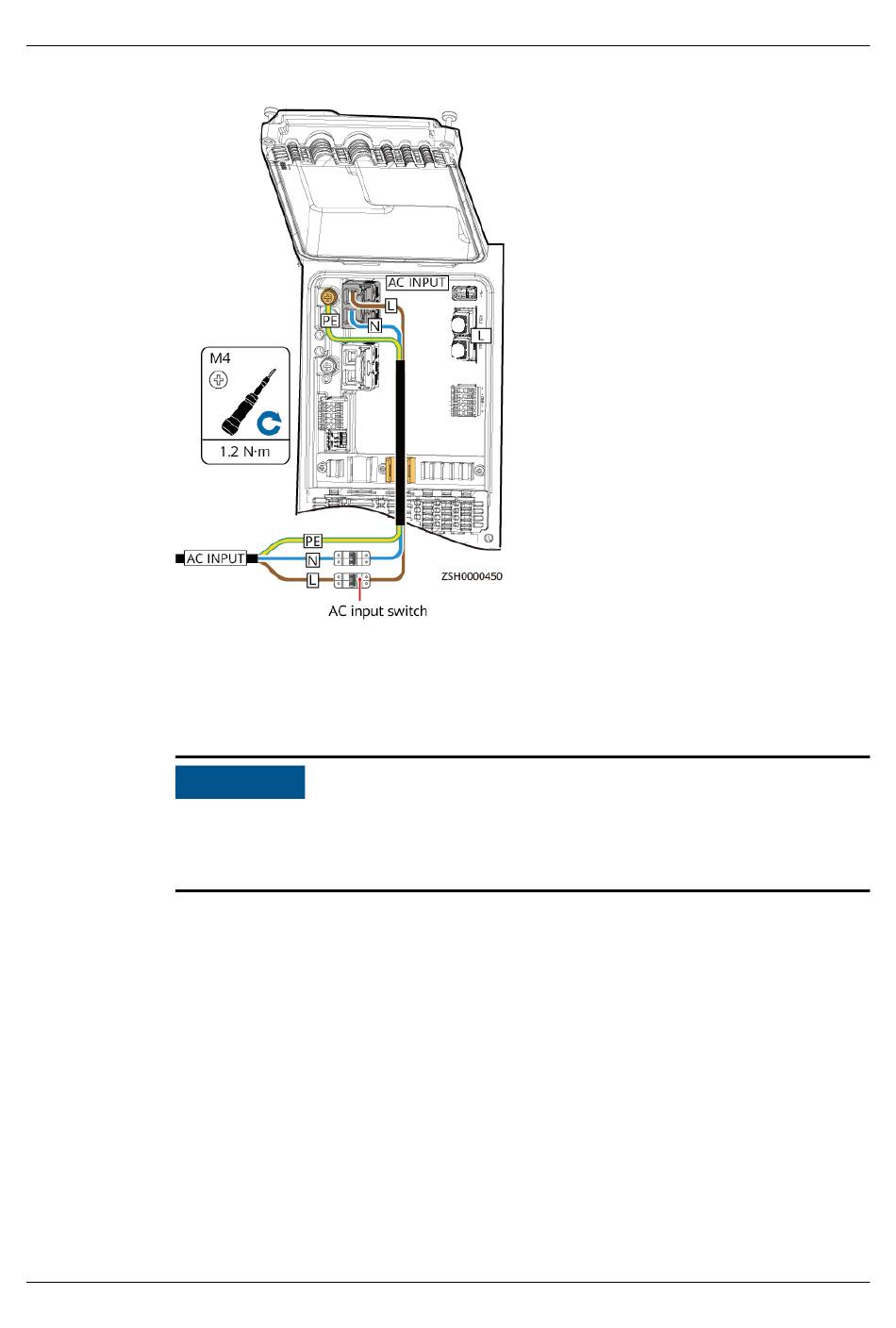

Figure 10-46 Installing an AC input power cable
----End

10.5.5 Installing Genset Control Cables

For a genset that starts when the dry contact is open, connect the signal cable to
ports NC and COM. For a genset that starts when the dry contact is closed,
connect the signal cable to ports NO and COM.
Procedure
Step 1 Install genset control signal cables.
