iSitePower-M (MAP05A1, MAB05B1)
User Manual
Step 2 Install battery signal cables.
1.
2.
3.
4.
5.
6.
Step 3 Install communications cables for other battery modules in sequence.
Issue 06 (2023-04-24)

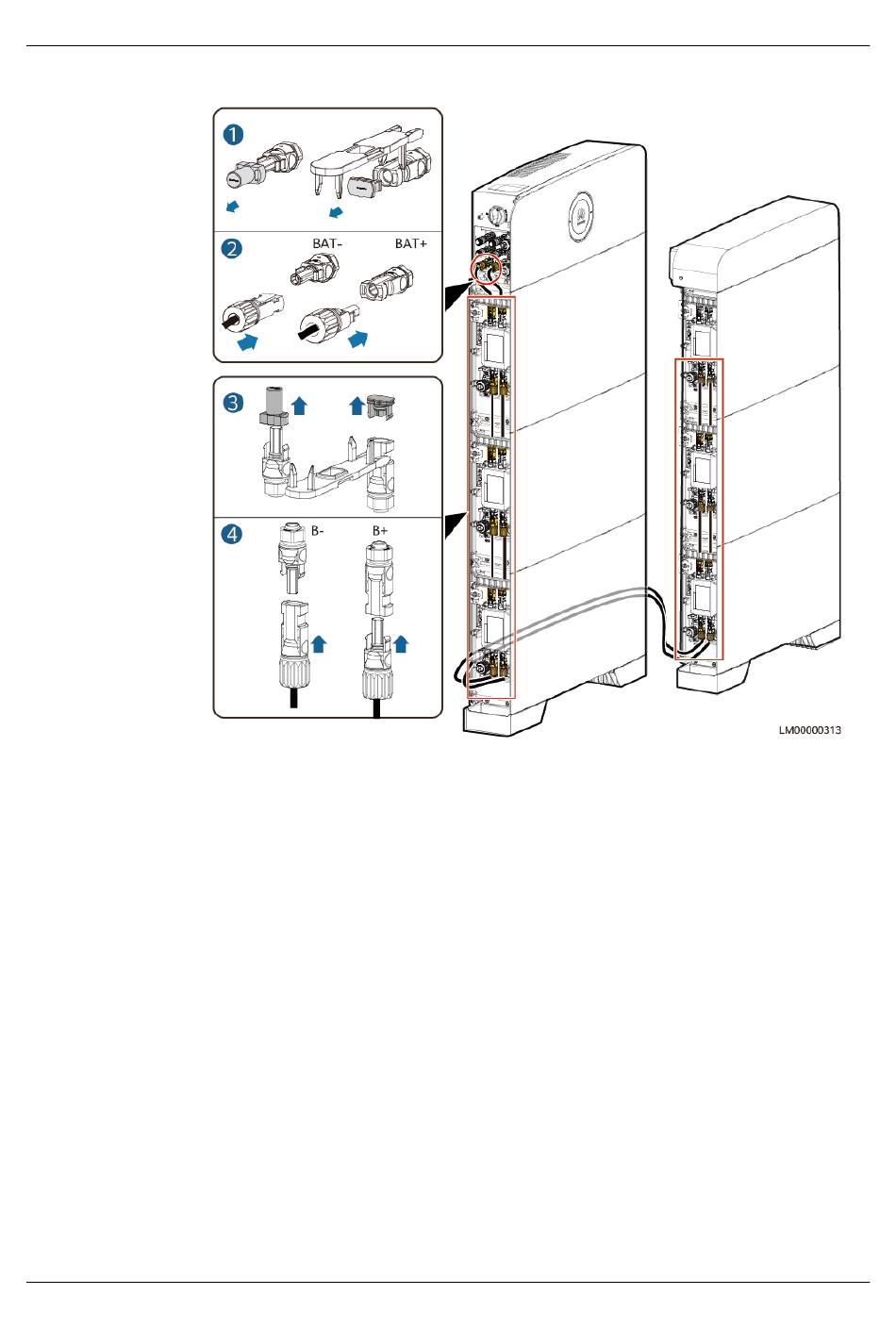

Figure 10-68 Installing battery module power cables
Remove the waterproof gland from the communications terminal of a battery
module.
Remove the locking cap and waterproof rubber plug from the
communications terminal housing.
Install communications cables for the battery module.
Install termination resistors. Otherwise, the communication will be
interrupted.
Lock the communications terminal waterproof gland and reinstall the
waterproof rubber plug.
Tighten the locking cap and secure the signal cables using cable clips.
Copyright © Huawei Digital Power Technologies Co., Ltd.
10 Electrical Connections
157
