● The live (L) wire and neutral (N) wire of an AC power cable must be correctly
● The PE wire of an AC power cable must be grounded.
● Do not reversely connect AC input power cables.
Procedure
Step 1 Connect an AC power cable to the terminal connector.

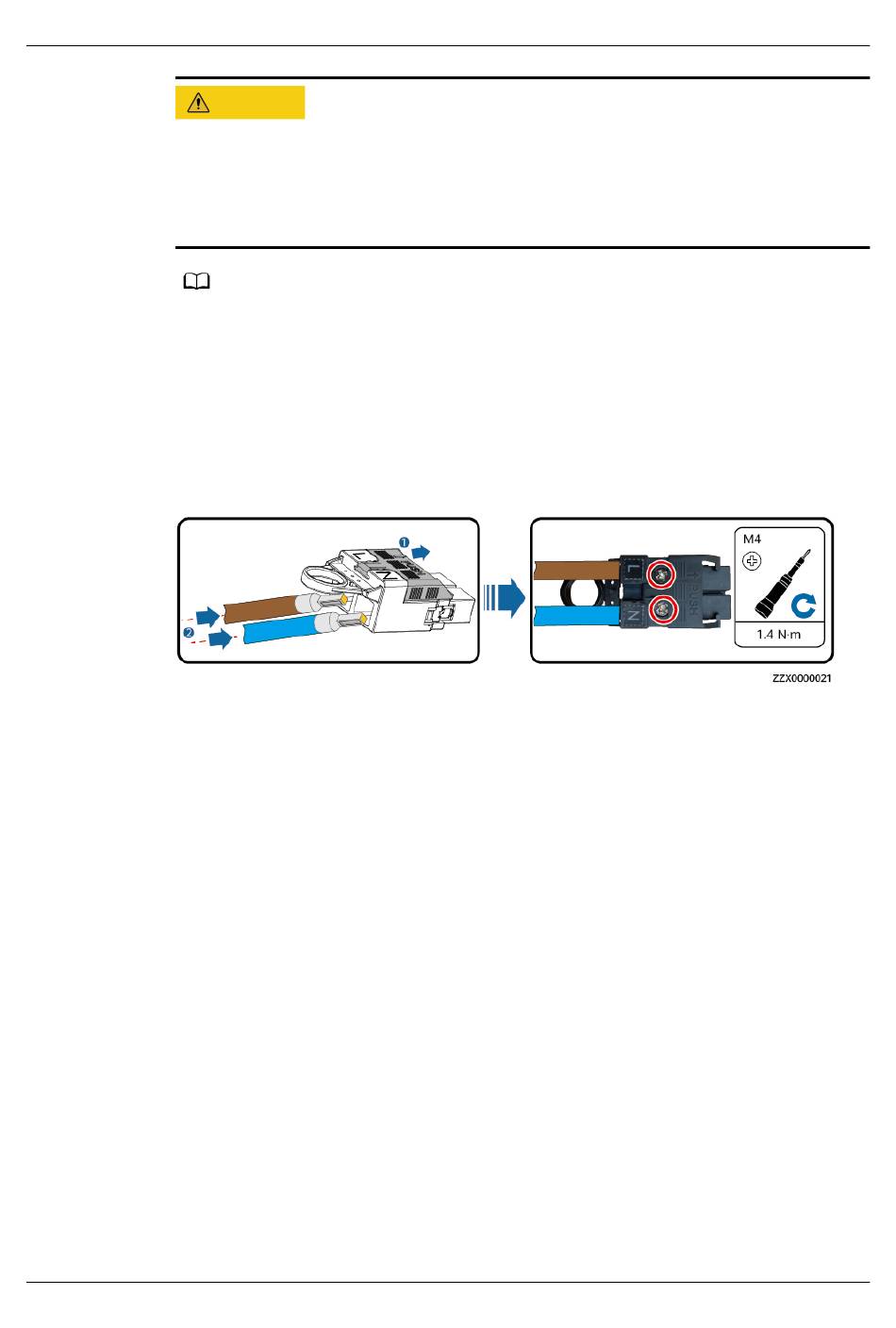

Figure 10-57 Connecting the cable to the terminal connector
Step 2 Install the AC input power cable and secure the cable using cable clips.
Issue 06 (2023-04-24)
CA UTION
connected.
NO TE
In single-system scenarios, connect the other end of the cable to an AC PDC. In parallel-
system scenarios, connect the other end of the cable by referring to section "(Optional)
Installing Parallel Cables."
