Parameters Settings

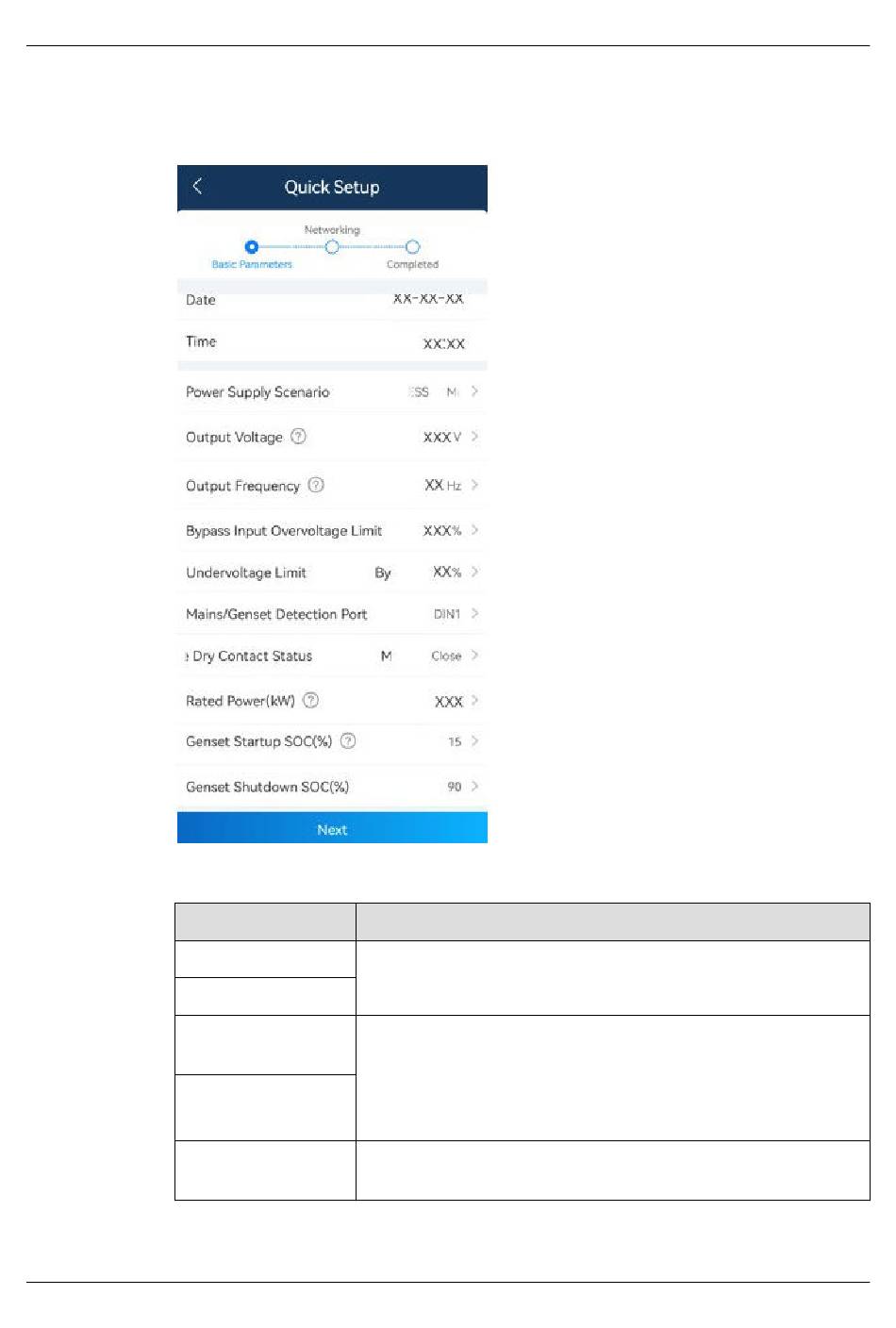

Figure 6-17 Setting basic parameters
Table 6-8 Basic parameters
Parameter
Output Voltage
Output Frequency
Bypass Input
Overvoltage Limit
Bypass Input
Undervoltage Limit
Mains/Genset
Detection Port
Issue 06 (2023-04-24)
Description
Set the output voltage and output frequency based on the
local power grid standards.
Set the bypass input overvoltage and undervoltage
protection thresholds. When the bypass input voltage
reaches the preset value, the system stops output
immediately and reports a bypass module protection
alarm.
Select a mains/genset detection port.
