Huawei iSitePower-M MAP05A1 User Manual page 77

iSitePower-M (MAP05A1, MAB05B1)
User Manual
Parameter
Rated Power(kW)
Genset Startup
SOC(%)
Genset Shutdown
SOC(%)

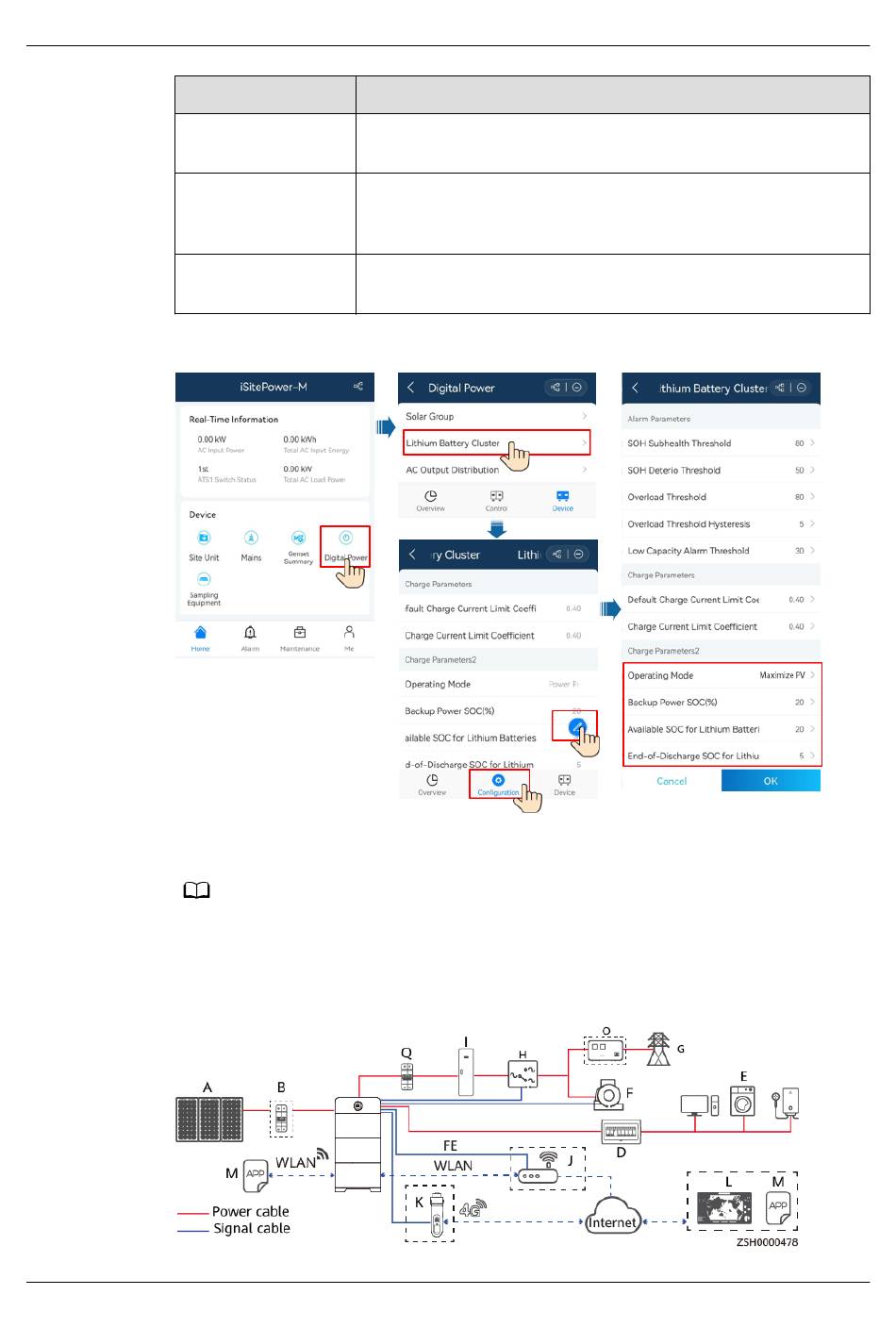

Figure 6-22 Setting lithium battery parameters
Networking Scenarios
Figure 6-23 Single system networking
Issue 06 (2023-04-24)
Description
Set the genset power to prevent genset overload and
system breakdown when ESSs are charged.
The value of Genset Startup SOC(%) must be at least
10% greater than the value of End-of-Discharge SOC for
Lithium Batteries(%).
The genset shuts down when the ESSs charge to the value
of Genset Shutdown SOC(%).
NO TE
If an ATS without overvoltage/undervoltage protection is used, the ATS may make
misjudgment due to overvoltage/undervoltage of the power grid. To ensure the power
supply quality, install an AVR before the ATS.
