iSitePower-M (MAP05A1, MAB05B1)
User Manual
Parameters Settings

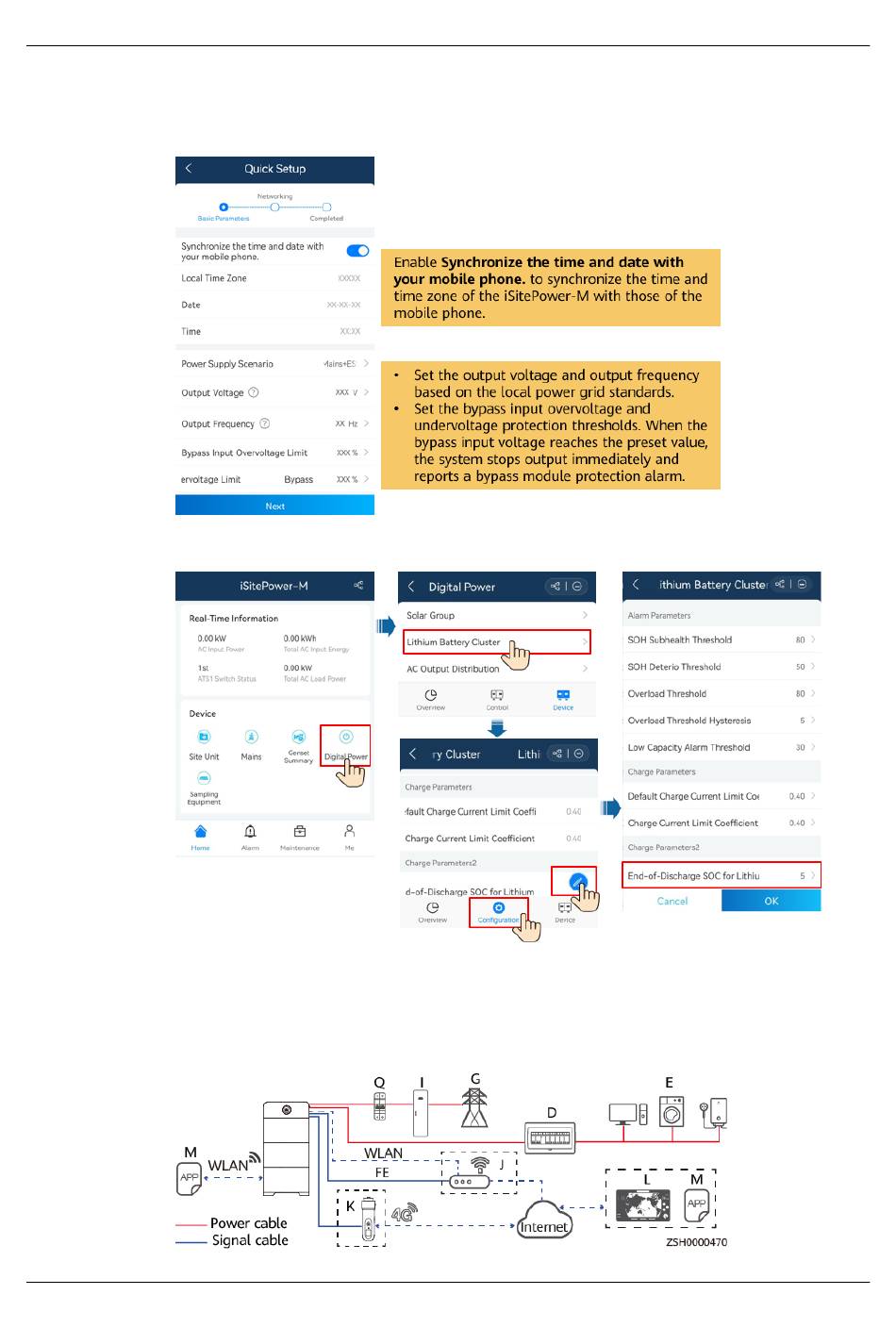

Figure 6-5 Setting basic parameters
Figure 6-6 Setting lithium battery parameters
Networking Scenarios
Figure 6-7 Single system networking (dashed boxes indicating optional
components)
Issue 06 (2023-04-24)
Copyright © Huawei Digital Power Technologies Co., Ltd.
6 Application Scenarios
52
