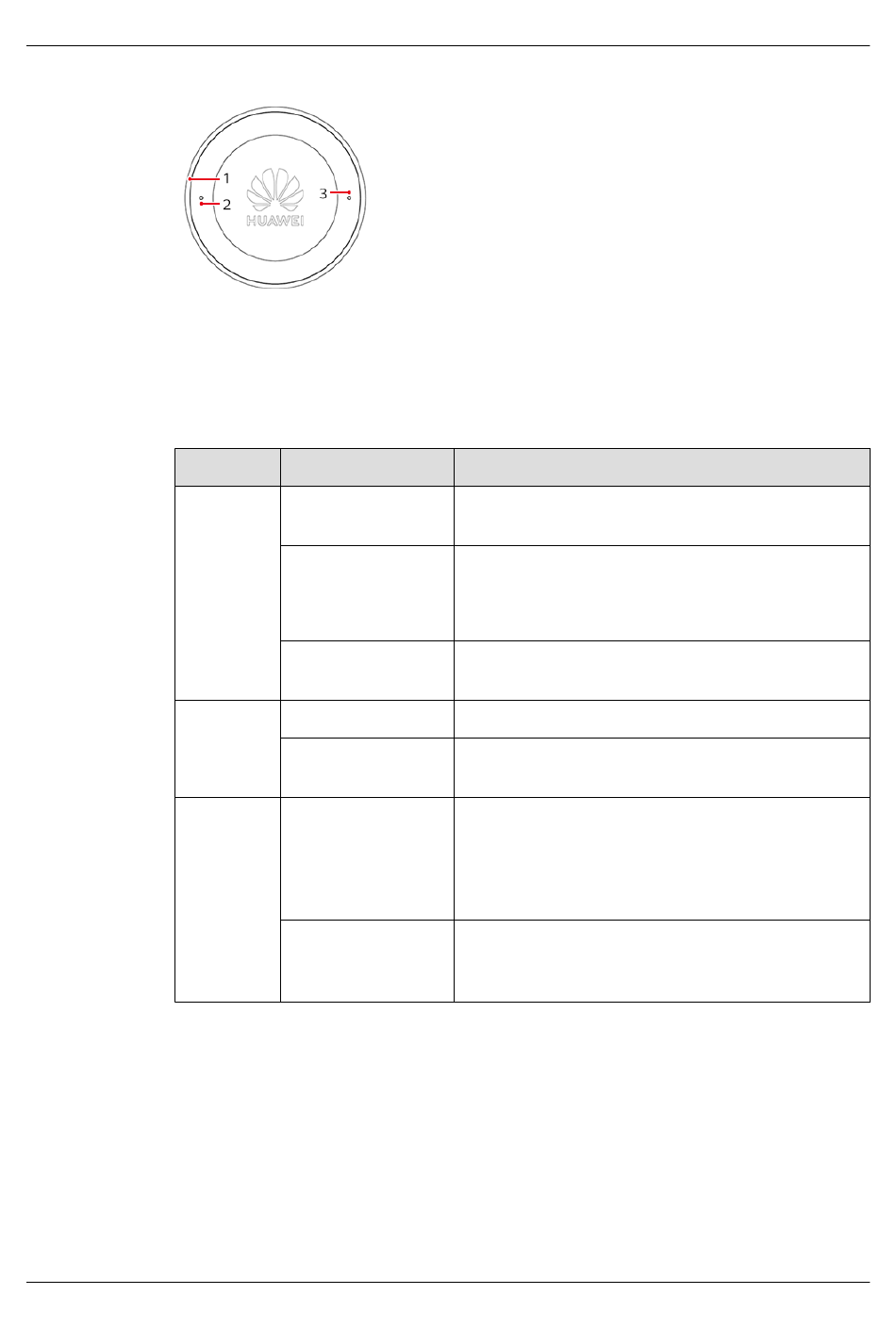

Figure 4-4 LED indicators
(1) Annular strip light
Table 4-3 Indicator description
Indicator
Running
indicator
WiFi
indicator
Annular
strip light
Issue 06 (2023-04-24)
Status
Steady on in
green
Off
Steady on in red
Off
Steady on in
green
Steady on in
green
Blinking green at
an interval of
1.25s
Copyright © Huawei Digital Power Technologies Co., Ltd.
(2) Running indicator
Description
The power system is running properly.
● The power system is not running.
● The power system is faulty.
● The power system has no input current.
The power system is running properly, but an
alarm is generated.
The WiFi function is abnormal.
The WiFi function is normal.
Indicates the battery capacity and that the
product is discharging.
NOTE
A part of the strip light dims when every 10% of
battery power is consumed.
Indicates that the product is being charged.
