OVERVIEW OF THE SMART DC CONTROLLER

The Smart DC Controller uses LED's to indicate active inputs when AC power is present. For operators
that use only DC power, you can push a button to show the active inputs. This button is at the bottom
left corner near the EMERG OPEN input.
On a new operator no active inputs should appear until external accessories and wiring are attached. If
any inputs are active before connecting external wiring, refer to "Smart DC Controller Troubleshooting"
on page 99.
COM
COM
COM
COM
COMMON
COM
TERMINALS
COM
COM
COM
STOP
OPEN
CLOSE
OPEN
PARTIAL
SENSOR
SENSOR
EXIT
LOOP
BLOCK
EXIT
IN OBS
LOOP
OUT OBS
LOOP
CENTER
LOOP
SENSOR
SENSOR
COM
+ 24 V
EMERG
OPEN
Press button to
light active inputs
2
3
1
OPEN +24V
B
A COM
COM
SHOW
RA DIO OP TIO
DU AL GA TE
LEDs

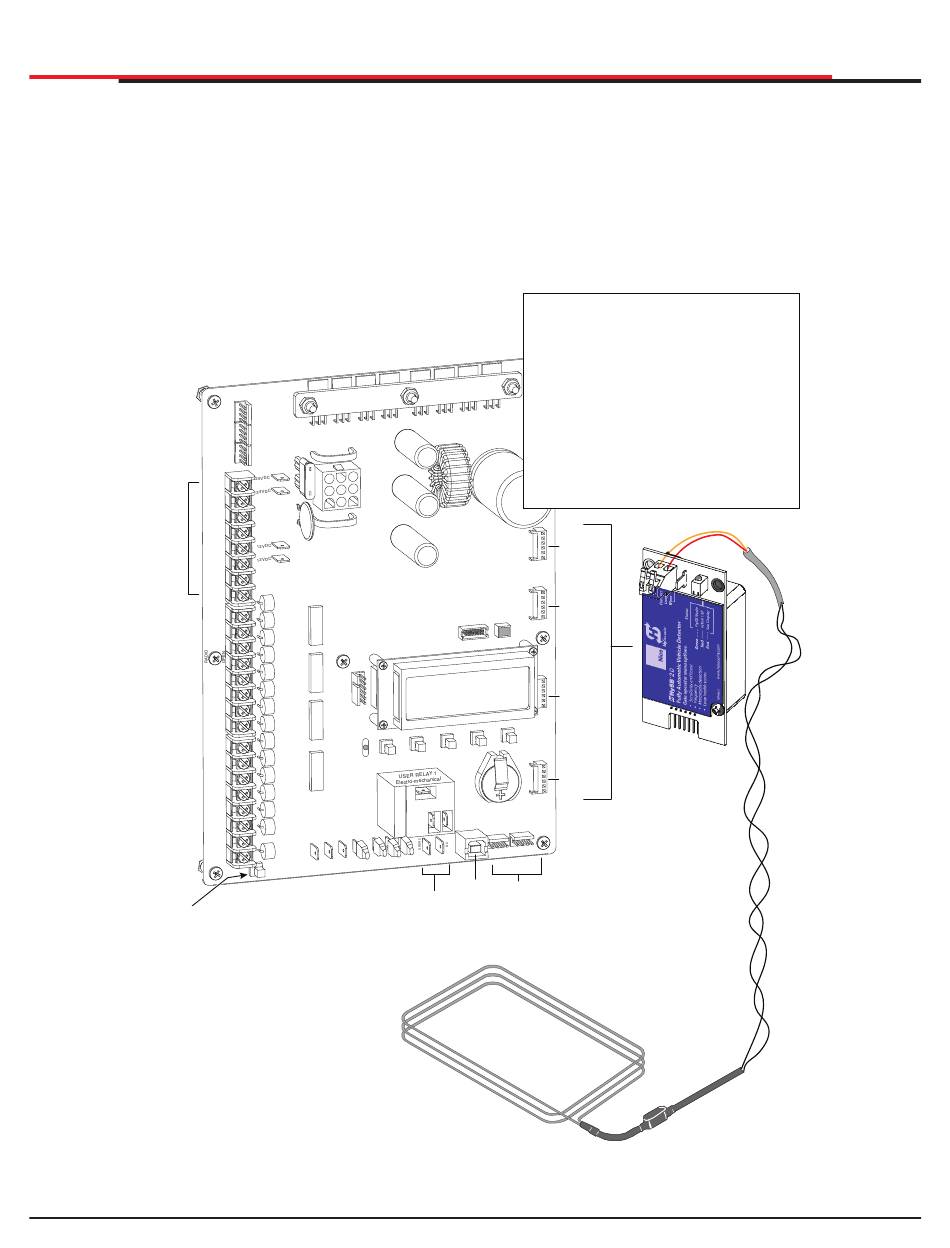

Figure 58. Smart DC Controller
SMART DC CONTROLLER
Amp Draw on Power Supplies
Two power supplies are available:
24VDC and 12VDC
A maximum draw of 1A is available
for each power supply.
NOTE: The 24VDC power supply has
four terminals that can be used in any
combination to draw the available 1A
maximum.
For example:
Amp Draw & Accessories connected to 24VDC
0.50A = Four photo eyes (for entrapment protection)
0.25A = Keypad with light
0.75A
HY-5B
FREE EXIT
HY-5B
INSIDE LOOP
HY-5B
OUTSIDE
LOOP
HY-5B
CENTER
LOOP
S1 CO M NO
NS
USB
RS-485
PORT
USER COMMUNICATION
RELAY
2
Solid state
