NOTICE
For extended battery backup installation
instructions, refer to "Installing the Extended
Battery Backup Kit" on page 41.
6. Slide the plastic cover off the control box and
attach the red spade connector to the battery
terminal on the upper DC power switch. See
Figure 26.
Green
Red
Black

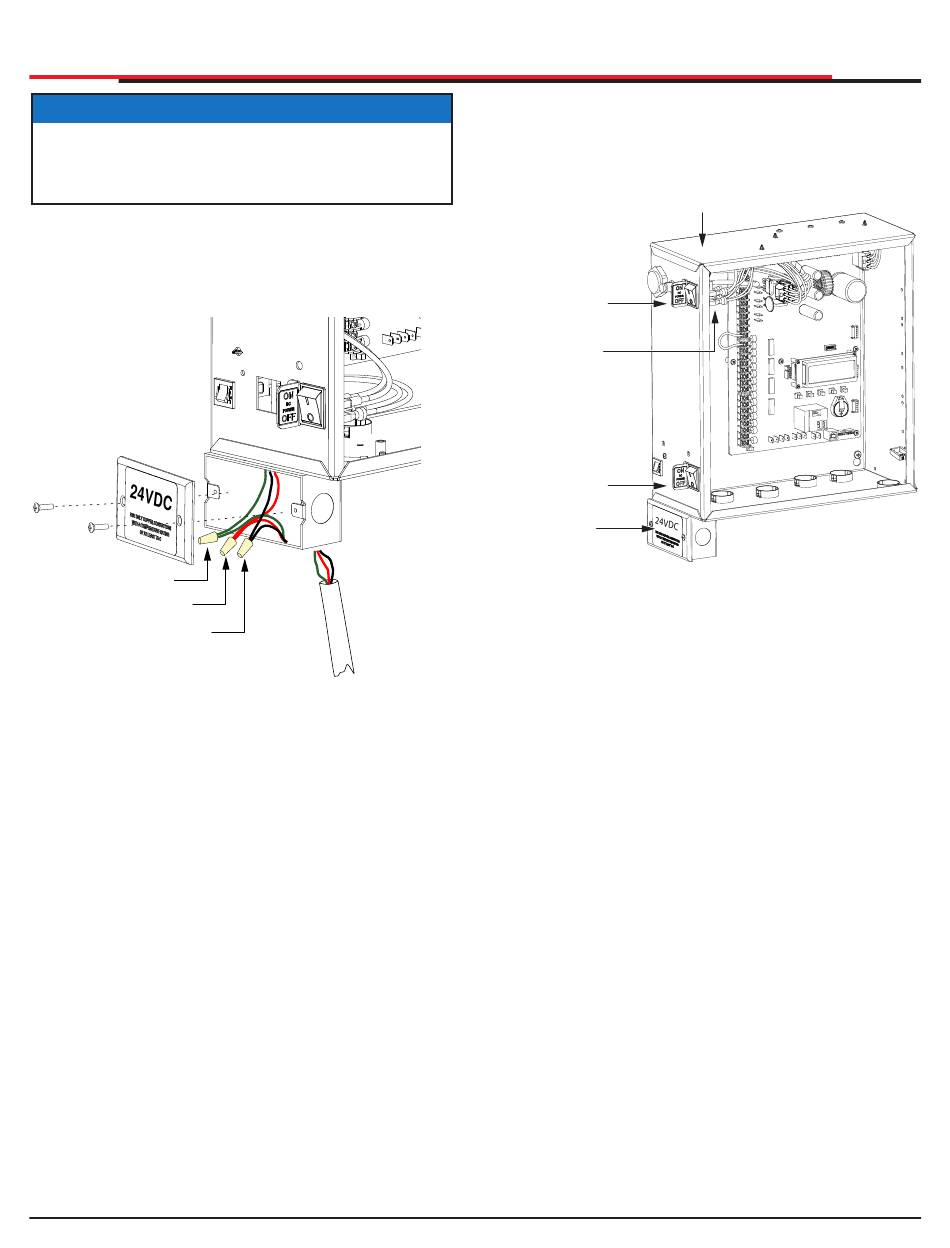

Figure 26. Solar Panels Wiring Connection
7. Turn both DC power switches ON and program
the Smart DC Controller. See Figure 26. See
"Programming the Initial Setup Menu" on
page 26.
Control Box
DC Ba�ery &
Motor
switch (OFF)
Red Spade
Connector
DC Solar Panel
switch (OFF)
Input &
ground wires
Figure 27. Solar Panels
POWER
