ENABLING THE FIRE DEPARTMENT
OVERRIDE
Many counties and cities require a Fire Department
override system for gate operators. The fire
department's alert system is a separate unit that
must be connected to the Smart DC Controller.
The FIRE DEPARTMENT OPEN option must be
properly configured through the Installer Menu
before the operator will recognize the fire open
input..
To enable the Fire Department Override, take the
following steps and see Figure 54 and Figure 55:
1. Connect the NO contact from the alert system
or key switch to the following Smart DC
Controller terminals: EMERG OPEN and +24V.
2. Configure the Installer Menu. At a gate status
display, press the MENU button twice. This
accesses the User Menu and the CLOSE TIMER
display appears.
3. Simultaneously, press the OPEN and RESET
buttons to enter the Installer Menu. Release
the buttons and the USAGE CLASS display
appears. It is the first item in the Installer Menu.
4. Press NEXT until the FIRE DEPARTMENT
OPEN display appears. The factory default
setting is 0.
5. Use the NEXT button to change the number
on the display to 1 and then press SELECT.
6. To exit the Installer Menu, press the MENU
button. The gate status appears in the display
indicating you have returned to Run Mode.

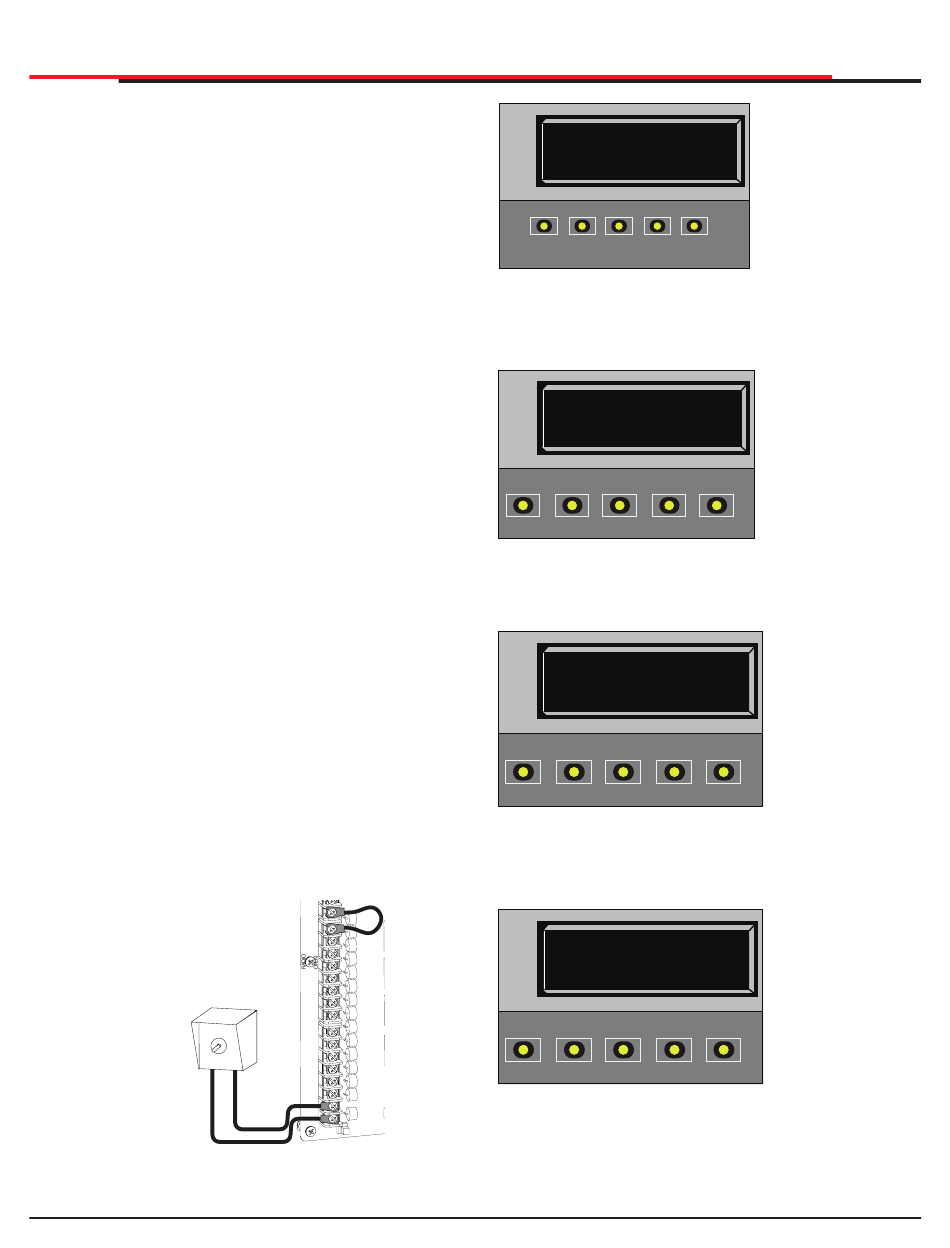

Figure 55. Fire Department Override Connections
COM
STOP
OPEN
CLOSE
OPEN
P ARTIAL
EYE
OPEN
EYE
CLOSE
EXIT
LOOP
BLOCK
EXIT
IN OBS
LOOP
OUT OBS
LOOP
FIRE
CENTER
LOOP
EDGE
EYE
COM
+ 24 V
EMERG
OPEN
SHOW
LEDs
DISPLAY AND MENU OPTIONS
HYSECURITY
GATE CLOSED
OPEN CLOSE STOP
PREV NEXT SELECT
CT 0 (OFF)
CLOSE TIMER
OPEN CLOSE STOP
PREV NEXT SELECT
LL 0 (OFF)
LEARN LIMIT
OPEN CLOSE STOP
PREV NEXT SELECT
FO 1
FIRE DEPT OPEN
OPEN CLOSE STOP
PREV NEXT SELECT
Figure 56. Fire Department Override Menus
1. Start at a gate
status display.
MENU RESET
2. To access the
User Menu,
press the MENU
button twice.
MENU RESET
3. Access the
Installer Menu, by
simultaneously,
pressing the
OPEN and
RESET
MENU RESET
buttons.
4. Use NEXT to
navigate to the
menu display.
Change the
setting using the
SELECT and
MENU RESET
NEXT buttons.
