APPENDIX A - INSTALLATION CONFIGURATIONS
3.25
2.50
Chain to Gate
5.50
2.66
10.50
Optional 50Ah
Batteries
*Note - reduced space
when optional batteries are used.
Stub Conduits 2" above
Pad.
122 122
support.hysecurity.com
Gate
Chain
12.5
17.5
6x8.5
Conduit
Area
4X 1/2" x 3 1/2"
Concrete Anchors
10.38
18.0
7.75
12.5
NOTE: DRAWING IS NOT TO SCALE.

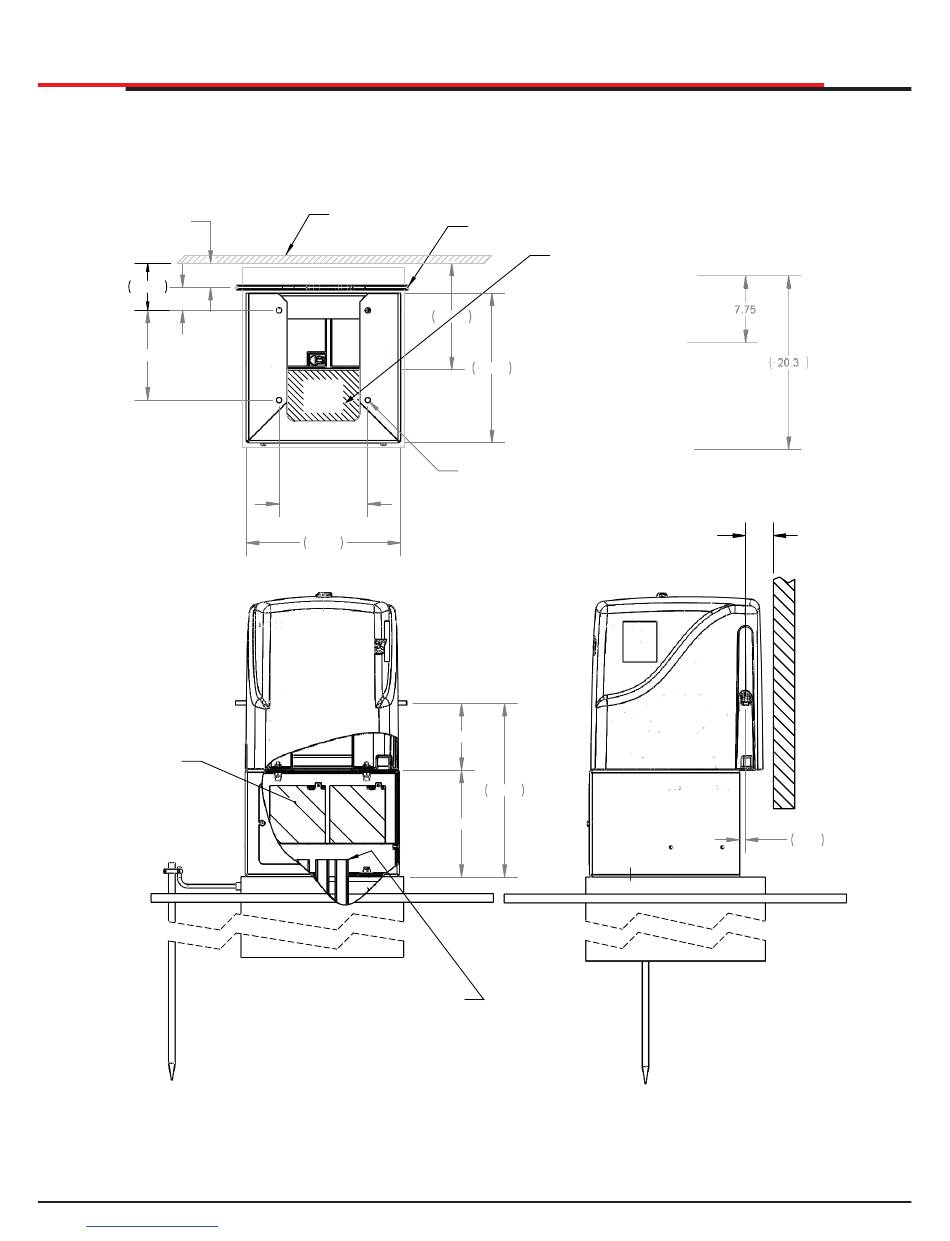

Figure 90. Base Riser Mounted
If no batteries In Base Riser -
Conduit Area is 8.5"x12"
3.25
2.50
CHAIN TO GATE
20.3
.72
