APPENDIX A - INSTALLATION CONFIGURATIONS
3.25
2.50
Chain to Gate
Route 6 AWG ground wire
through conduit & attach
to ground lug provided.
Earth Ground
High Voltage
Consult local
codes for
proper depth

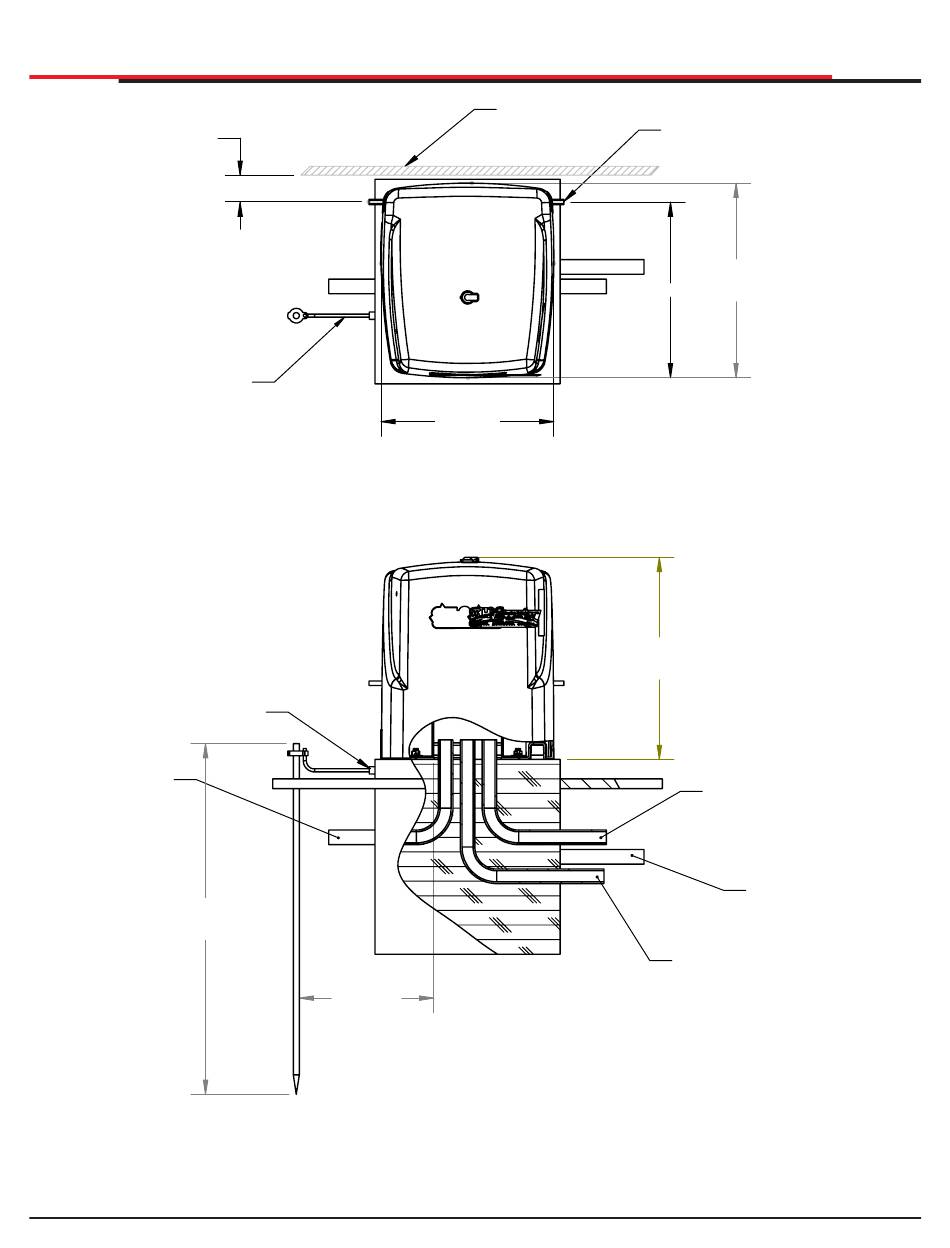

Figure 89. Operator Size, Conduit and Grounding Information
Gate
17.7
Operator
Width
3 Foot
Maximum
NOTE: DRAWING IS NOT TO SCALE.
Chain
20.0
Operator
18.0
Length
20.7
Operator
Height
Master/Slave Wires
(Optional)
Vehicle Loop
Control Wires
Low Voltage /
Communication Wires
