8. Connect the black wire to the black negative
terminal on the 50Ah battery. Connect its
opposite end to the black lead exiting the
support bracket.
Post-mounted
operator with
base extension

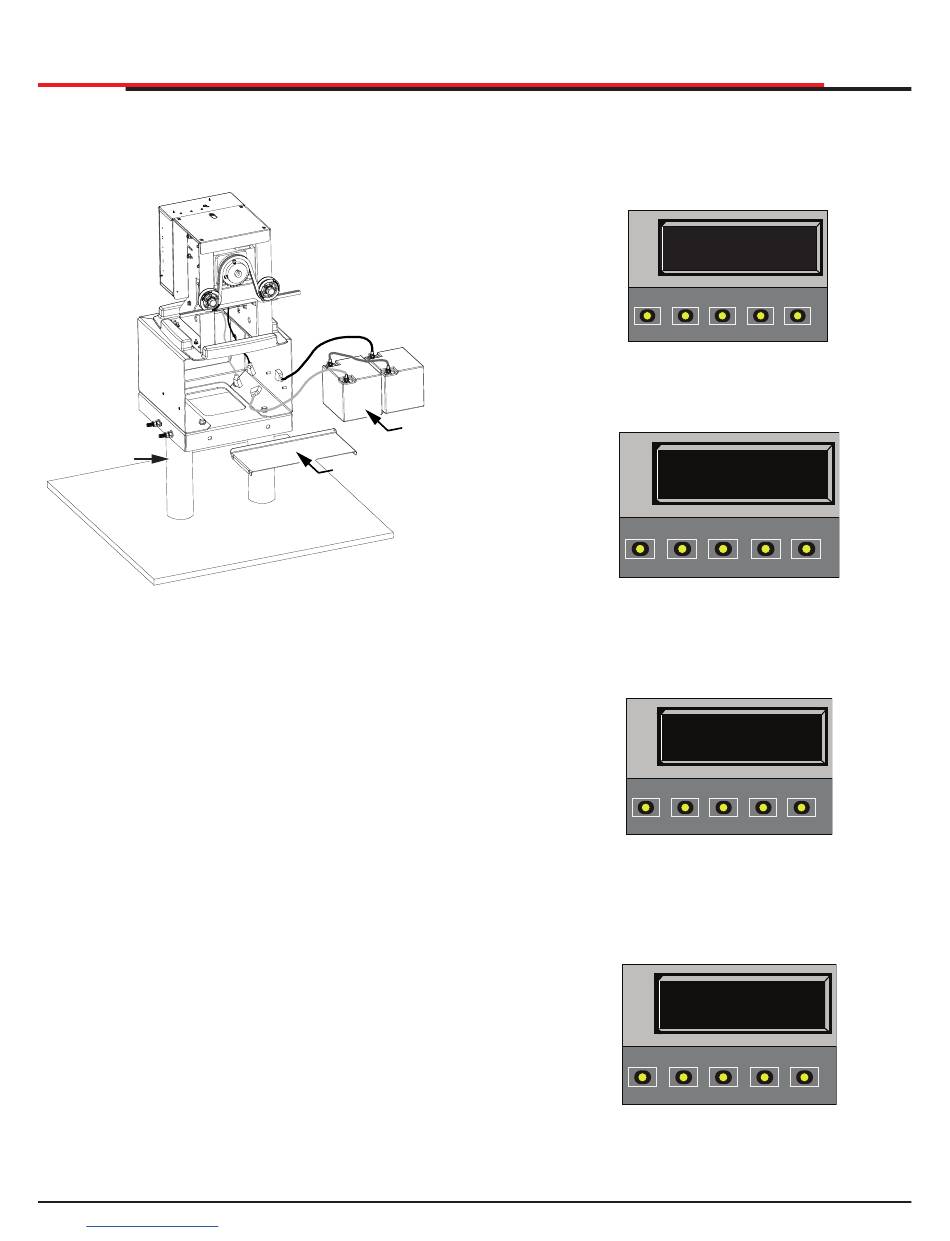

Figure 32. Wired Extended Battery Backup Kit
9. Access the Installer Menu on the Smart DC
Controller.
42 42
support.hysecurity.com
Black
Blue
Red
50Ah
ba�eries
Accessory tray
10. Change the Battery Setting (BT) in the Installer
Menu to a number 1 (Extended). Follow the
steps in the menu tree shown here:
a. Start at a gate status display.
HYSECURITY
GATE CLOSED
OPEN CLOSE
PREV
Figure 33. HySecurity Gate Closed
b. Press MENU twice to access User Menu.
CT 0 (OFF)
CLOSE TIMER
OPEN CLOSE
PREV NEXT
Figure 34. CT 0 (OFF) Close Timer
c. Simultaneously pressing OPEN and RESET
accesses Installer Menu. Release buttons.
LL 0 (OFF)
LEARN LIMIT
CLOSE
OPEN
PREV NEXT
Figure 35. LL 0 (OFF) Learn Limit
d. Use NEXT to navigate to the menu display.
Change the setting using the SELECT and
NEXT buttons.
BT 1 (EXTENDED)
BATTERY TYPE
OPEN CLOSE
PREV NEXT
Figure 36. LL 0 (OFF) Learn Limit
