RUN MODE

Gate status displays appear when the operator is
ready and waiting for a gate operation command.
When the menu display is flashing "GATE
OPENING" or "GATE CLOSING" a command
has been received which starts the motor and
drives the gate. The command may come from
a variety of sources: a card reader, pushbutton
remote, or recognition of a vehicle passing over
a free exit loop detector. In all cases, the operator
"runs" the motor when it receives a gate operation
command.

Understanding Gate Status Displays

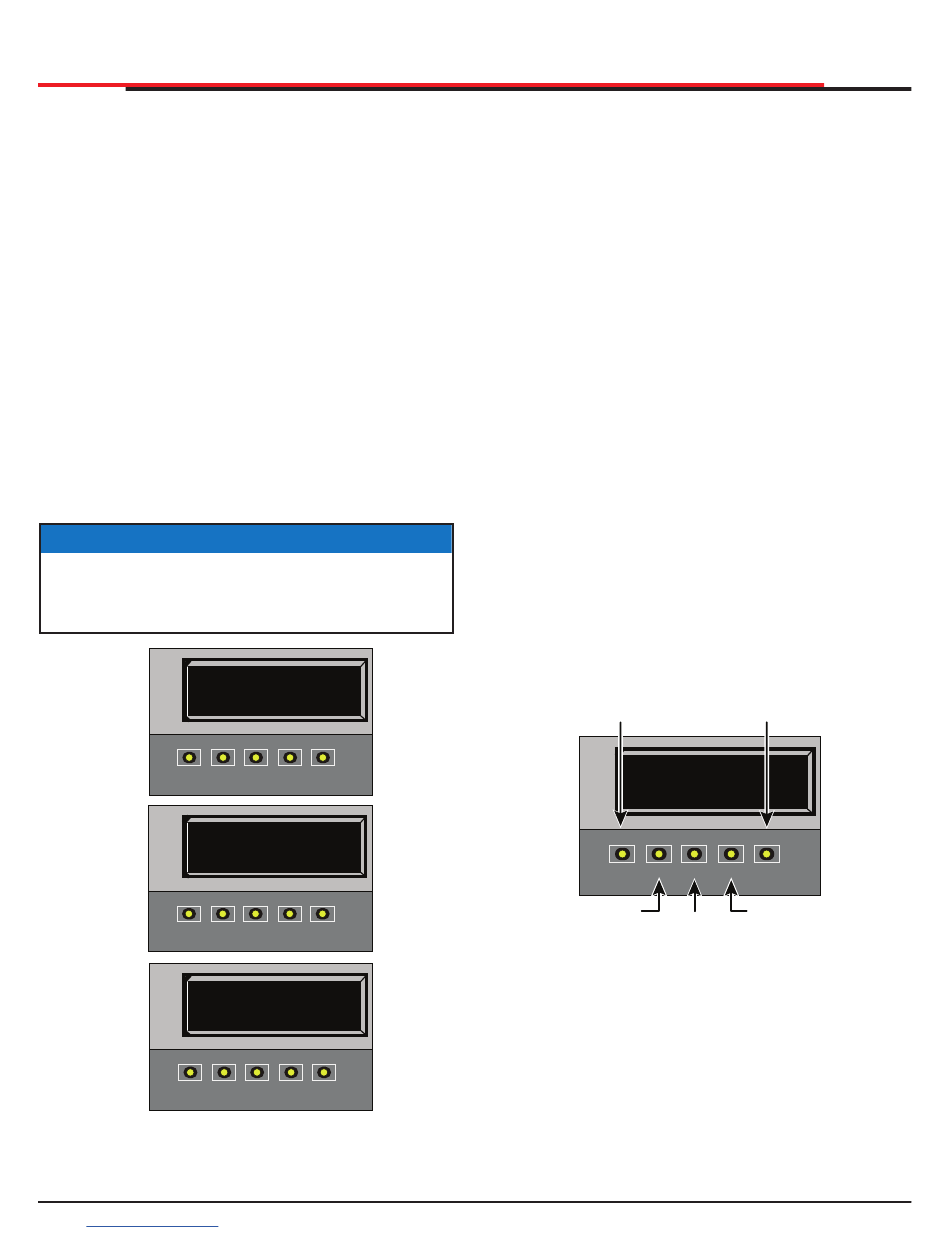

The three gate status displays in Figure 39 indicate
the position or status of the non-moving gate.
When accessing the User or Installer Menus, you
must begin at one of these gate status displays.
NOTICE
While accessing the User or Installer Menus,
the motor cannot engage and the gate will
not move.
HYSECURITY
GATE OPEN
OPEN CLOSE
PREV NEXT
HYSECURITY
GATE CLOSED
OPEN CLOSE
PREV NEXT
HYSECURITY
GATE STOPPED
OPEN CLOSE
PREV NEXT
Figure 40. Gate Status Display
46 46
support.hysecurity.com
STOP MENU RESET
SELECT
STOP MENU RESET
SELECT
STOP MENU RESET
SELECT
DISPLAY AND MENU OPTIONS
USING THE SMART DC CONTROLLER
BUTTONS IN RUN MODE
The Run Mode buttons are distinguished by the
fact that their name appears above each button.
The Controller buttons with text above and below
function differently depending on the mode of the
operator. See Figure 40. Three different modes
exist:
• Run Mode - gate is operational awaiting
commands.
• Menu Mode - motor disengages and operator
commands are ignored. Menu navigation and
menu selection can be accomplished using
the Smart DC Controller buttons or through a
START software connection via the USB port.
Refer to Using the Smart DC Controller Buttons
In Menu Mode.
• Fault Mode - errors, faults or alerts appear
on the display. Some errors or faults can be
reset with the STOP button while more serious
faults require the RESET button or cycling
power. Faults indicate a need for diagnosis
and resolution. Refer to Smart DC Controller
Troubleshooting.
Pressing OPEN
opens the gate.
HYSECURITY
GATE CLOSED
OPEN
PREV
Pressing
CLOSE
closes the
gate.
Note: Pressing the MENU
button twice bypasses the
operator status display
Figure 41. Smart DC Controller Button Functions in
Pressing RESET clears
faults and returns to
Run Mode.
CLOSE STOP MENU RESET
NEXT SELECT
Pressing
Pressing
MENU
STOP
scrolls through
stops gate operator status
displays and
travel.
accesses the
User Menu.
The CLOSE
TIMER display
appears
which presents
the first of
eleven
programmable
menu items
Run Mode
