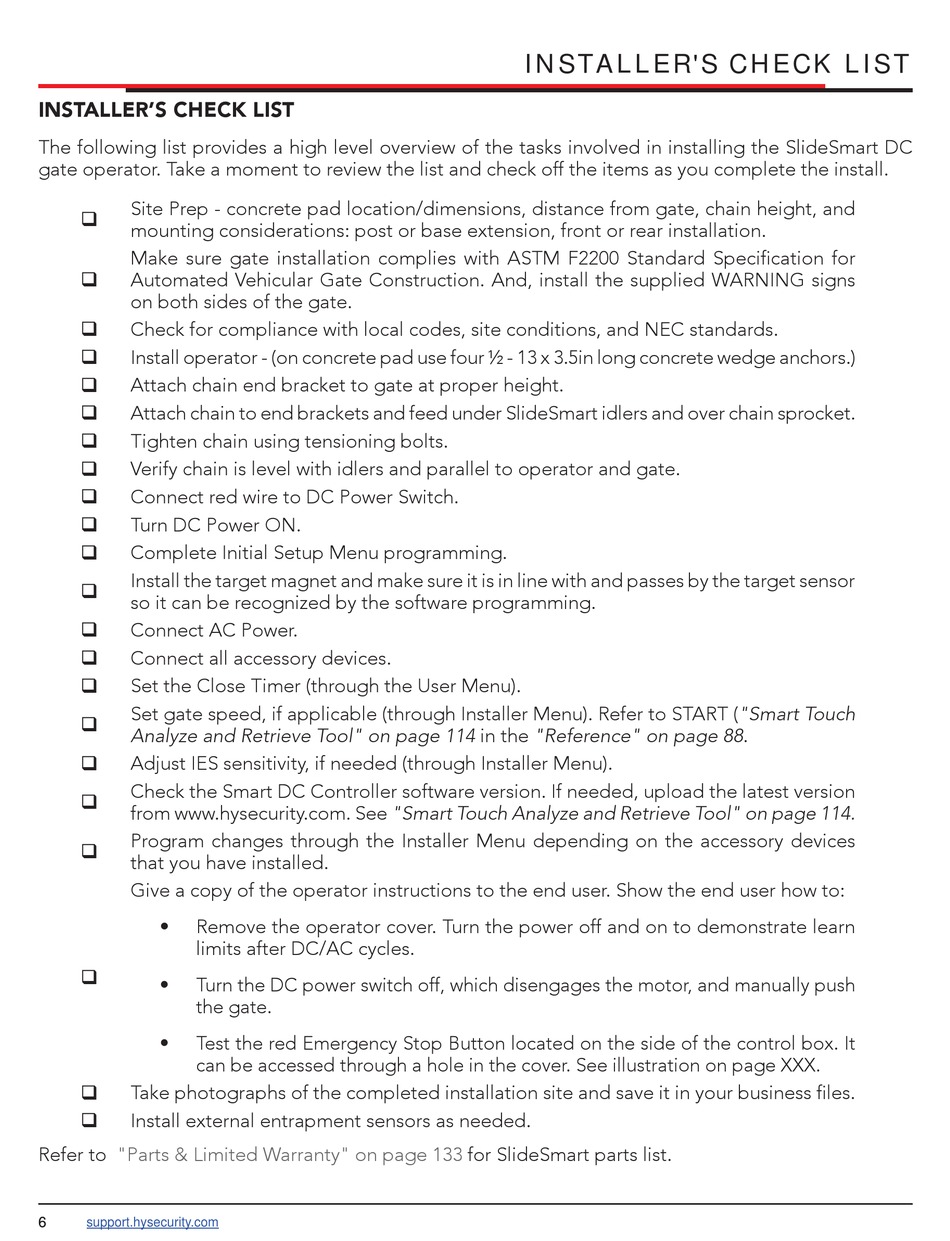

INSTALLER'S CHECK LIST

The following list provides a high level overview of the tasks involved in installing the SlideSmart DC
gate operator. Take a moment to review the list and check off the items as you complete the install.
Site Prep - concrete pad location/dimensions, distance from gate, chain height, and

mounting considerations: post or base extension, front or rear installation.
Make sure gate installation complies with ASTM F2200 Standard Specification for
 Automated Vehicular Gate Construction. And, install the supplied WARNING signs
on both sides of the gate.
Check for compliance with local codes, site conditions, and NEC standards.

Install operator - (on concrete pad use four ½ - 13 x 3.5in long concrete wedge anchors.)

Attach chain end bracket to gate at proper height.

Attach chain to end brackets and feed under SlideSmart idlers and over chain sprocket.

Tighten chain using tensioning bolts.

 Verify chain is level with idlers and parallel to operator and gate.
 Connect red wire to DC Power Switch.
Turn DC Power ON.

Complete Initial Setup Menu programming.

Install the target magnet and make sure it is in line with and passes by the target sensor

so it can be recognized by the software programming.
 Connect AC Power.
 Connect all accessory devices.
Set the Close Timer (through the User Menu).

Set gate speed, if applicable (through Installer Menu). Refer to START ("Smart Touch

Analyze and Retrieve Tool" on page 114 in the "Reference" on page 88.
Adjust IES sensitivity, if needed (through Installer Menu).

Check the Smart DC Controller software version. If needed, upload the latest version

from www.hysecurity.com. See "Smart Touch Analyze and Retrieve Tool" on page 114.
Program changes through the Installer Menu depending on the accessory devices

that you have installed.
Give a copy of the operator instructions to the end user. Show the end user how to:
• Remove the operator cover. Turn the power off and on to demonstrate learn
limits after DC/AC cycles.

• Turn the DC power switch off, which disengages the motor, and manually push
the gate.
• Test the red Emergency Stop Button located on the side of the control box. It
can be accessed through a hole in the cover. See illustration on page XXX.
Take photographs of the completed installation site and save it in your business files.

Install external entrapment sensors as needed.

Refer to "Parts & Limited Warranty" on page 133
6 6
support.hysecurity.com
INSTALLER'S CHECK LIST
for SlideSmart parts list.
