WIRING AC POWER

DANGER
Turn off AC power at the source (circuit breaker
panel) before accessing the wires in the
SlideSmart junction box. Follow facility Lock
Out/Tag Out procedures. Make sure both the
DC and AC power switches, on the side of the
SlideSmart control box are in the off position.
See Figure 22.
WARNING
DO NOT connect the 115VAC service
outlet to 208/230VAC power supply
wires. To use the 115VAC service
outlet on a 208/230VAC installation,
the electrician needs to run an extra
neutral wire to the operator from the
power source and wire the service
outlet per code.
Place the power switches
in the OFF posi�on
Service outlet
115 VAC wires for
the service outlet
Junc�on box
cover and label
32 32
support.hysecurity.com
Wiring of gate operators must conform to the
NEC standards and comply with all local codes.
If you plan to connect to 208/230VAC power,
read the WARNING in Figure 22. The voltage
selector switch on the AC Power board must
be moved to the 230V position or damage to
the operator will occur and void the Limited
Warranty.
O
DC
POW
OF
O
AC
POW
OF

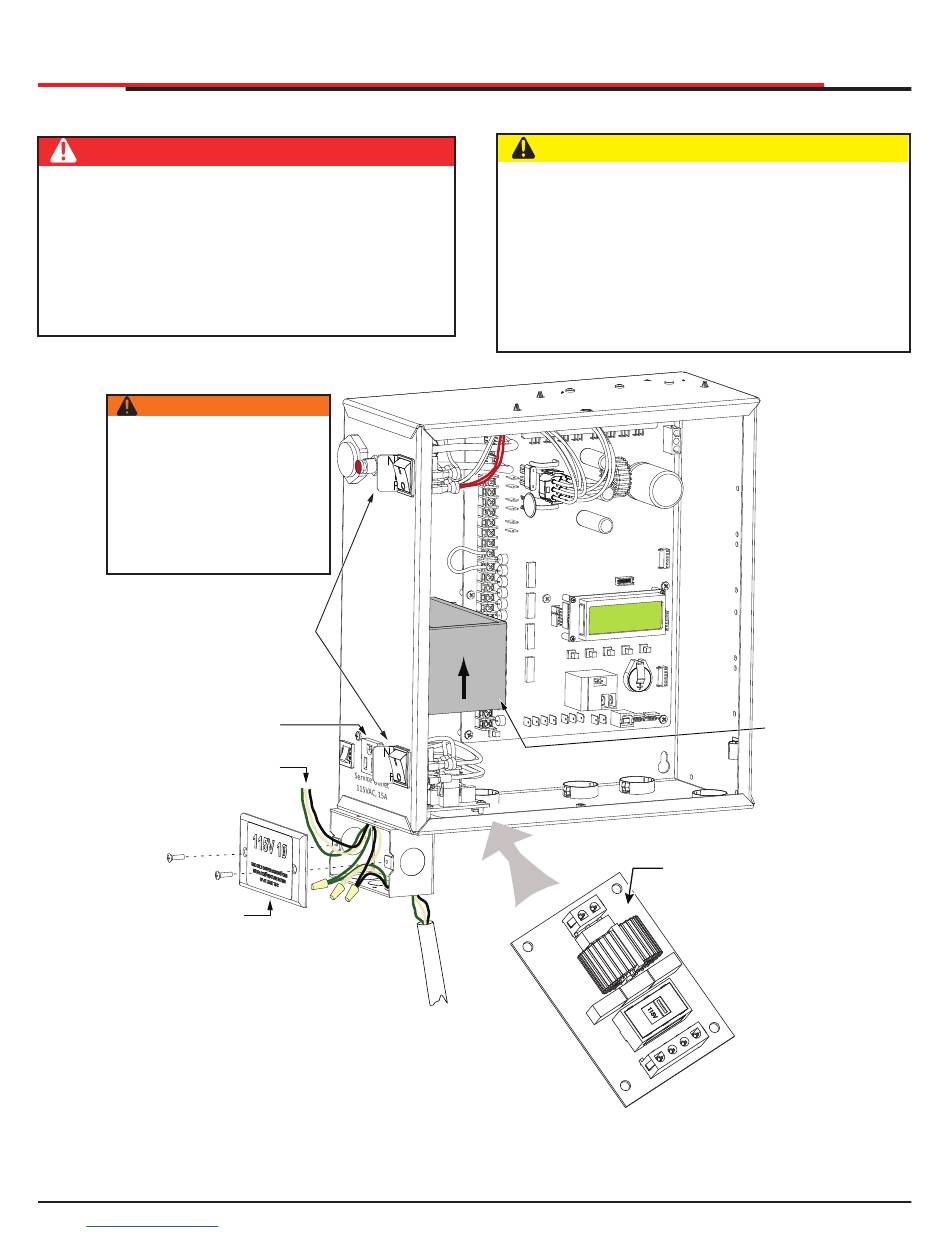

Figure 23. Wiring AC Power
CAUTION
Voltage selector
switch is factory
set to 115V.
If power input is 208/230V,
move the switch so 230V
appears and change the
label on the junc�on box
POWER
High voltage
protec�on cover
