Chapter 2: External Connectors Pinout Description

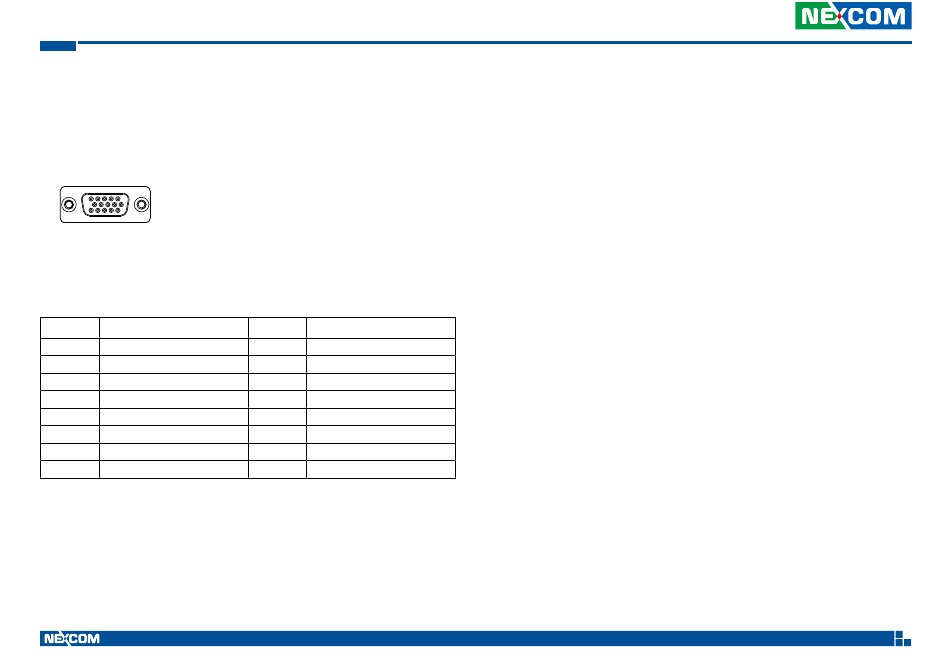

VGA
Connector number: 23
5
1
15
11
Pin
Definition
1
VGA_RED
2
VGA_GREEN
3
VGA_BLUE
4
NC
5
GND
6
GND
7
GND
8
GND
Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved.
Pin
Definition
9
VGA_5V
10
GND
11
NC
12
VGA_DAT
13
VGA_HSYNC
14
VGA_VSYNC
15
VGA_CLK
32
VTC 1031 and nROK 1031 Series User Manual
