7. CAN Bus

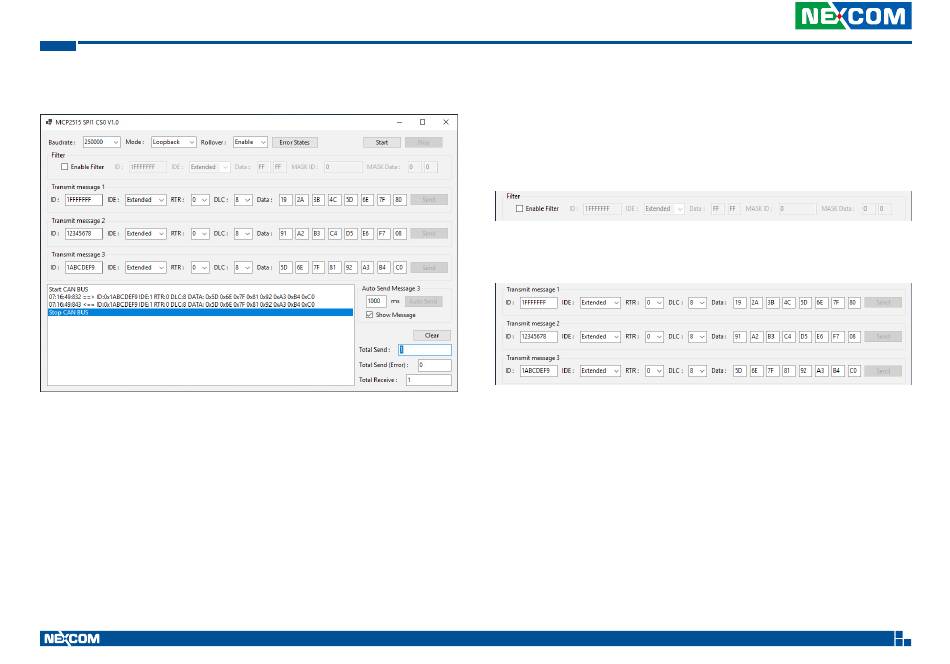

Defines Baudrate.

Defines Mode as the following options:

•

Normal: Send data

•

Sleep: Power saving mode (wake up automatically when data is received)

•

Loopback: Self-test mode

•

Listen-Only: Only receive data, including receiving wrong data

Defines Rollover as the following options:

•

Enable: Receive buffer 1 and buffer 2 data

•

Disable: Only receive buffer data

Error States for showing error states.

Start button: After the setting is completed, press the Start button to start

sending data.

Stop button: Stop sending data.

Filter:

Check Enable Filter to enable the filter.

Transmit message: 3 groups of transmit buffers.

Defines IDE as the following options.

•

Standard (11Bit ID, with Data1 and Data2).

•

Extended (29Bit ID).
