Chapter 4: System Setup

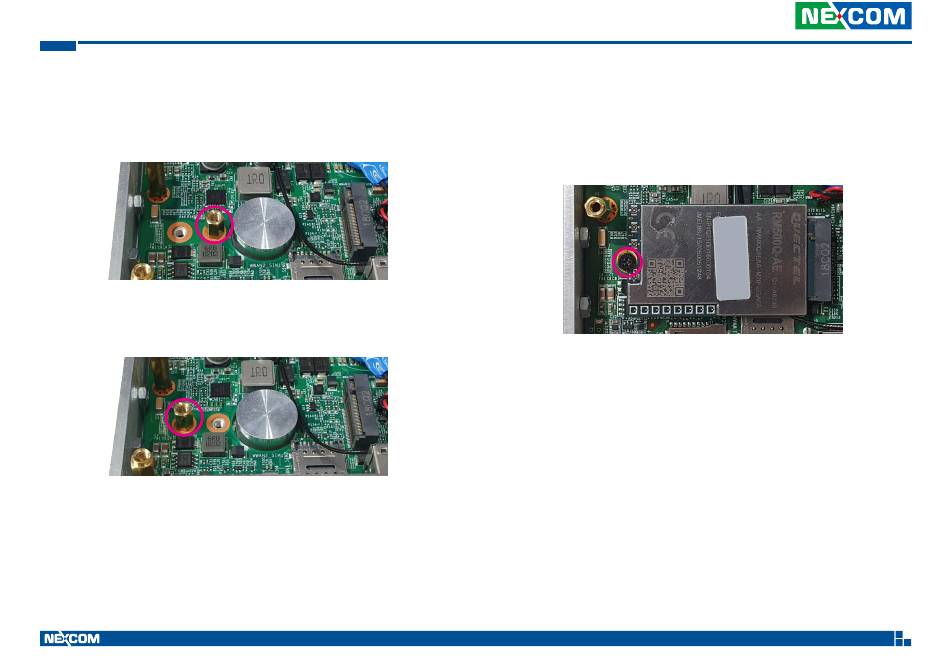

For M.2 3050/3052:

1. Locate the WWAN M.2 slot (CN9). Remove the copper standoff from

the 3042 location using the appropriate tool.

2. With the copper standoff removed, tighten it to the 3052 location.

3. Insert the module into the M.2 slot at a 45 degrees angle until the gold-

plated connector on the edge of the module completely disappears

inside the slot. Then fasten a screw into the mounting hole to secure

the module.
