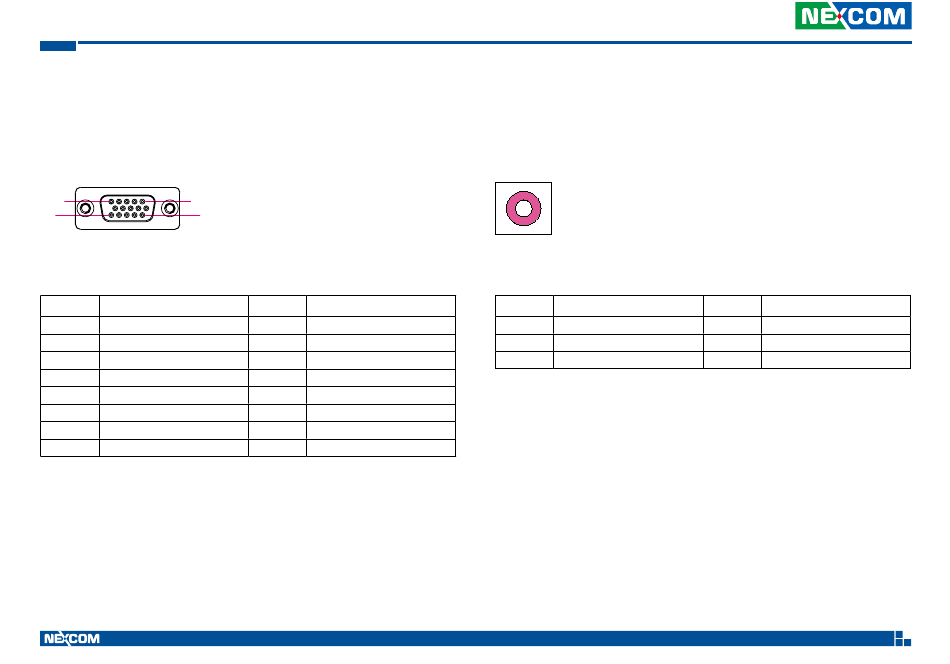

Chapter 2: External Connectors Pinout Description
VGA Connector
Connector number: 15
5
1
15
11
Pin
Definition
1
RED
3
BLUE
5
GND
7
VGA_GND
9
VGA_VCC
11
CH7517_SPD
13
VGA_HS
15
VGA_CLK
Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved.
Pin
Definition
2
GREEN
4
CH7517_SPC
6
M_DET
8
VGA_GND
10
GND
12
VGA_DAT
14
VGA_VS
Mic-in Connector
Connector number: 16
Pin
Definition
1
GND
3
GND
5
NC
17
Pin
Definition
2
Mic-in (Left Channel)
4
Detect
VTC 1011 Series User Manual
