Chapter 2: External Connectors Pinout Description

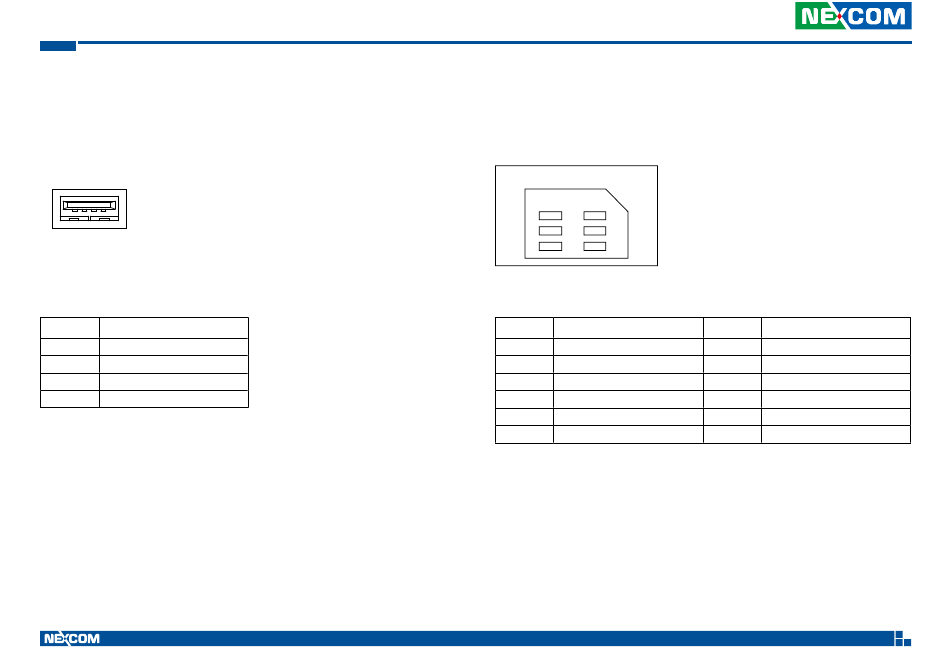

USB 2.0

Connector number: 7
1 4
Pin Definition
1 5V
2 USB_1N
3 USB_1P
4 GND
Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved.

SIM1 Micro-SIM Socket

Connector number: 8
C3 C7
C2
C6
C1 C5
Pin Definition
C1 UIM1_PWR_C
C3 UIM1_CLK_C
C5 GND
C7 UIM1_DAT_C
C9 NC
CD11 UIM1_CD_C
23
Pin Definition
C2 UIM1_RST_C
C4 NC
C6 NC
C8 NC
C10 NC
