Chapter 2: External Connectors Pinout Description

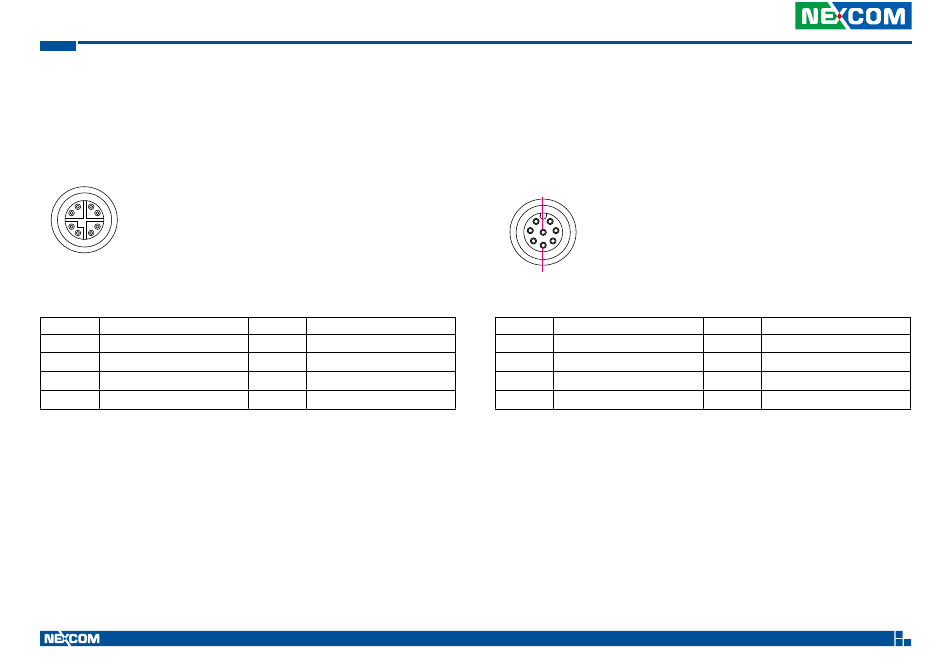

M12 X-Coded 8-Pin LAN2 Connector

Connector number: 26 (nROK 1031 and nROK 1031-C2)
4 5
3 6
2
7
1 8
Pin Definition
1 LAN-2_MDI0P
2 LAN-2_MDI0N
3 LAN-2_MDI1P
4 LAN-2_MDI1N
*Network speed is supported up to 1Gbps (10/100/1000Mbps).
Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
5 LAN-2_MDI3P
6 LAN-2_MDI3N
7 LAN-2_MDI2N
8 LAN-2_MDI2P

M12 A-Coded 8-Pin USB 2.0 Connector

(nROK 1031 and nROK 1031-C2 only)
Connector location: 27
5
1 2
7 3
6 4
8
Pin Definition
1 USB1_N
3 USB1_VCC5
5 USB2_N
7 USB2_VCC5
34
Pin Definition
2 USB1_P
4 USB1_GND
6 USB2_P
8 USB2_GND
