Appendix C: GNSS Feature
VIOB-GPS-DR02/VTK-GPS-DR02

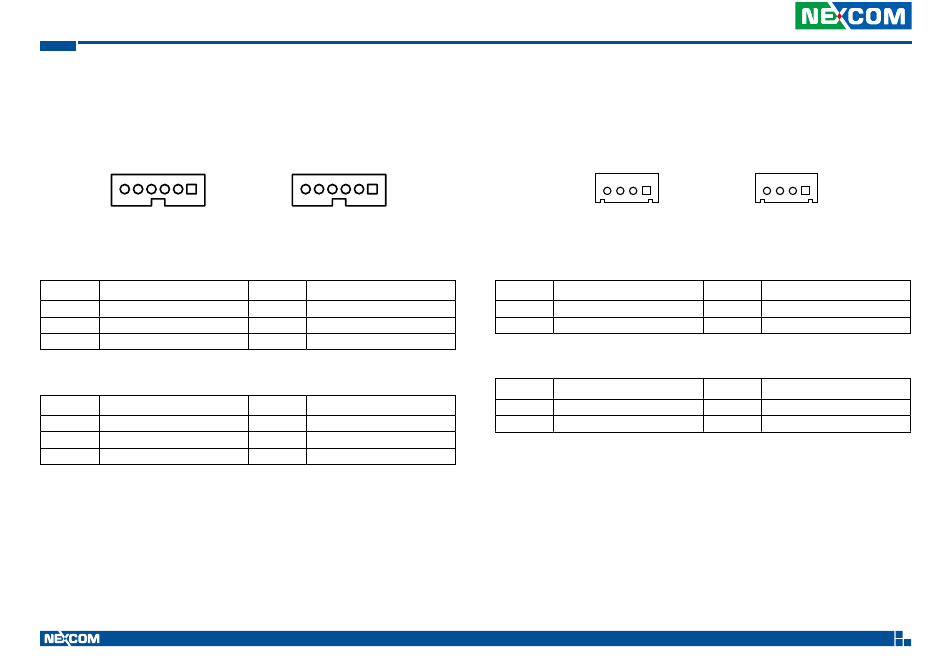

Module Connector Pin Definitions
6 1
J2 (GPS Side)
J2 Pin Definition
Pin Definition
1 GPS_3V3
3 GPS_TXD_M
5 NC
J9 Pin Definition
Pin Definition
1 GPS_BAT
3 GPS_TXD
5 GND
Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved.
6 1
J9 (PC Side)
Pin Definition
2 GND
4 GPS_RXD_M
6 +V3.3ALW
Pin Definition
2 NC
4 GPS_RXD
6 VCC3_GPS
4
J3 (GPS Side)
J3 Pin Definition
Pin Definition
1 DR_DIRECTIO_M_R
3 1PPS_R
J8 Pin Definition
Pin Definition
1 GND
3 ODOMETER
COM Port for GPS: COM 4
Baud Rate: 9600
90
1 4 1
J8 (GPS Side)
Pin Definition
2 DR_ODOMETER_M_R
4 GND
Pin Definition
2 NC
4 DIRECTION
