Chapter 3: Jumpers and Connectors

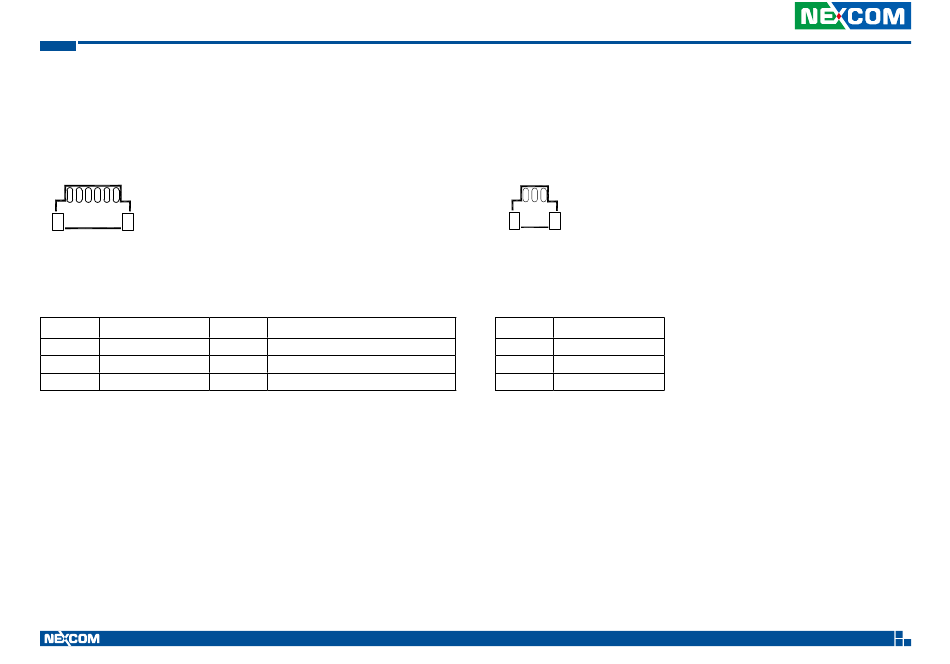

GNSS Connector

Connector size: 1 x 6 = 6-pin header (1.00mm)
Connector location: J9
1 6
Pin Definition
1 GPS_BAT
3 GPS_TXD
5 GND
Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 NC
4 GPS_RXD
6 GPS_3V3

MCU Debug Port Connector

Connector size: 1 x 3 = 3-pin header (1.0mm)
Connector location: J11
1 3
Pin Definition
1 MCU_TX6
2 MCU_RX6
3 GND
